Details
- Domestic switching devices

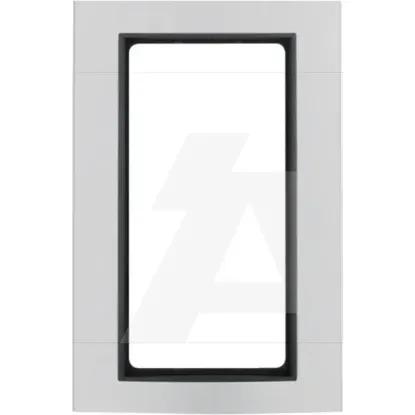

- Cover frame for domestic switching devices
- 1 KOM
- HAGER
Technical specifications
Number of modules horizontal (module system)
0
Number of units horizontal
1
With mounting grid
No
Number of units vertical
1
Suitable for wall duct
Yes
Number of units
1
Suitable for built-in installation
Yes
Material quality
Aluminium
Flush-mounted installation
Yes
Material
Metal
Mounting direction
Vertical
Label space/information surface
No
Number of modules vertical (module system)
0
Suitable for floor box
No
Halogen free
Yes
Surface protection
Anodised
Surface finishing
Matt
Anti-bacterial treatment
No
Degree of protection (IP)
IP20
With hinged lid
No
Colour
Aluminium
RAL-number (similar)
9006
Depth
9.5mm
Type of fastening
Clamp mounting
Width
91mm
Impact strength
IK07
Height
137.1mm
Built-in width
55.4mm
Built-in height
111.1mm
Transparent
No
Diameter bore hole (opening)
0mm
From same serie
