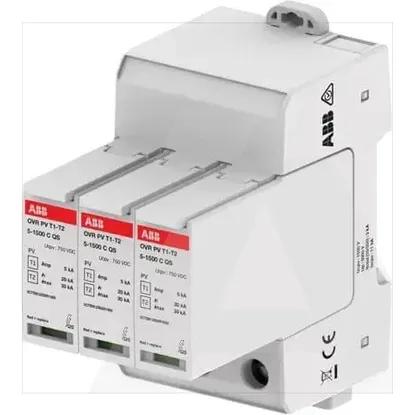

Main Product Image

2CTB812050R1500 | OVR PV T1-T2 5-1500 P QS

Code: 1938069

ManufacturerRAZNO
Catalog number2CTB812050R1500
Type
EAN code4053546034646

Details

  • Earthing, lightning and surge protection
  • Surge protection device for power supply systems
  • 1 KOM
  • ABB

Technical specifications

Nominal voltage AC

-V

Max. continuous voltage AC

1500V

Voltage protection level L-N

-kV

Voltage protection level N-PE

5kV

System configuration DC

Yes

System configuration IT

No

System configuration TN-S

No

System configuration TN-C-S

No

System configuration TT

No

Nominal voltage DC

1500V

Short-circuit breaking capacity (Isccr)

11kA

Number of conductors (without earthing)

2

Nominal discharge surge current (8/20)

20kA

Construction size

3 modular spacing

Voltage protection level

5kV

Max. continuous voltage DC

1500V

System configuration TN-C

No

System configuration other

No

With remote signalling contact

No

Max. conductor cross section flexible (fine-strand)

25mm²

Mounting method

DIN rail (top hat rail) 35 mm

Integrated backup fuse

No

Degree of protection (IP)

IP20

Category type 2

Yes

System configuration TN

No

Max. conductor cross section solid (solid, stranded)

35mm²

Max. PV-voltage

1500V

Signalling at the device

None

Max. discharge surge current (8/20)

40kA


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs


From same serie
