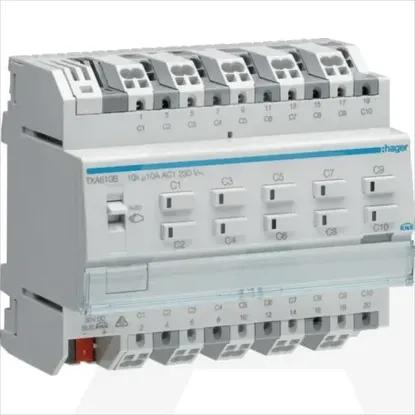

TXA610B

Code: 1931108

ManufacturerRAZNO
Catalog numberTXA610B
Type
EAN code3250616048812

Details

  • Installation bus systems
  • Switch actuator for bus system
  • 1 KOM
  • HAGER

Technical specifications

Bus system LON

No

Mounting method

DRA (DIN-rail adapter)

Radio frequent bidirectional

No

Bus system radio frequent

No

Bus system Powernet

No

Bus system KNX

Yes

Width in number of modular spacings

6

Bus system KNX radio

No

Other bus systems

None

Local operation/hand operation

Yes

With LED indication

Yes

Max. switching power LED

276W

Output power

1200W

Number of digital inputs

0

Max. switching power

9000W

Suitable for C-load

No

Max. number of switching contacts

10

Rated operating voltage

230 - 230V

Rated current

10A

Different phases connectable

Yes

With bus connection

Yes

Max. switching current

10A

Bus module detachable

No

Modular expandability

No

Degree of protection (IP)

IP20
