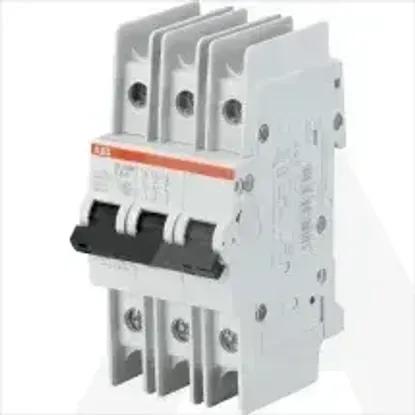

2CDS273337R0504 | SU203M-C50

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

15kA

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

-kA

Number of poles (total)

3

Number of protected poles

3

Release characteristic

C

Rated insulation voltage Ui

440V

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

11.2kA

Rated voltage

400V

Voltage type

AC

Frequency

50 - 60Hz

Rated current

50A

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

15kA

Suitable for flush-mounted installation

No

Current limiting class

3

Concurrently switching neutral conductor

No

Pollution degree

3

Width in number of modular spacings

3

Built-in depth

69mm

Over voltage category

3

Additional equipment possible

Yes

Ambient temperature during operating

-25 - 55°C

Connectable conductor cross section multi-wired

0 - 25mm²

Degree of protection (IP)

IP20

Connectable conductor cross section solid-core

0 - 35mm²

Rated impulse withstand voltage Uimp

4kV

Flush-mounted installation

No

Explosion-proof

No

Power loss

13.5W
