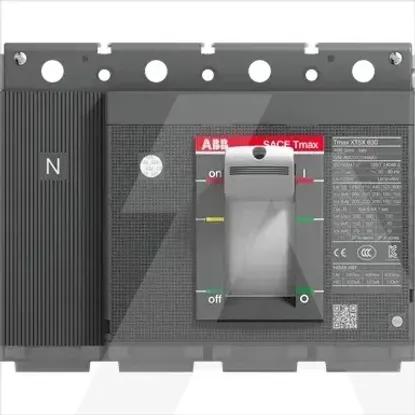

Main Product Image

1SDA100565R1 | XT5L 630 TIJELO PREKIDACA 4p F F

Code: 1893424

ManufacturerRAZNO
Catalog number1SDA100565R1
Type
EAN code8056221006415

Details

  • Low-voltage industrial components
  • Power circuit-breaker for trafo/generator/installation protection
  • 1 KOM
  • ABB

Technical specifications

Number of poles

4

Overload release current setting

- - -A

Adjustment range undelayed short-circuit release

- - -A

Suitable for DIN rail (top hat rail) mounting

No

Adjustment range short-term delayed short-circuit release

- - -A

Rated short-circuit breaking capacity lcu at 400 V, 50 Hz

-kA

Number of auxiliary contacts as normally closed contact

0

Number of auxiliary contacts as normally open contact

0

Number of auxiliary contacts as change-over contact

0

Rated permanent current Iu

630A

Rated voltage

220 - 690V

DIN rail (top hat rail) mounting optional

Yes

With switched-off indicator

No

Integrated earth fault protection

No

Type of electrical connection of main circuit

Bolt connection

Position of connection for main current circuit

Front side

With integrated under voltage release

No

Device construction

Built-in device fixed built-in technique

Type of control element

Toggle

Motor drive integrated

No

Complete device with protection unit

No

Motor drive optional

Yes

Degree of protection (IP)

IP20


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs
