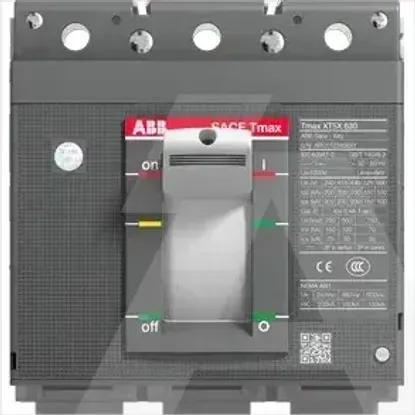

Main Product Image

1SDA100551R1 | XT5N 630 TIJELO PREKIDACA 3p F F

Code: 1893410

ManufacturerRAZNO
Catalog number1SDA100551R1
Type
EAN code8056221006279

Details

  • Low-voltage industrial components
  • Power circuit-breaker for trafo/generator/installation protection
  • 1 KOM
  • ABB

Technical specifications

Number of poles

3

Overload release current setting

- - -A

Adjustment range undelayed short-circuit release

- - -A

Suitable for DIN rail (top hat rail) mounting

No

Rated short-circuit breaking capacity lcu at 400 V, 50 Hz

-kA

Adjustment range short-term delayed short-circuit release

- - -A

Number of auxiliary contacts as normally closed contact

0

Number of auxiliary contacts as normally open contact

0

Number of auxiliary contacts as change-over contact

0

Integrated earth fault protection

No

With switched-off indicator

No

DIN rail (top hat rail) mounting optional

Yes

Rated permanent current Iu

630A

Device construction

Built-in device fixed built-in technique

Rated voltage

220 - 690V

Type of electrical connection of main circuit

Bolt connection

Motor drive optional

Yes

Complete device with protection unit

No

Position of connection for main current circuit

Front side

Degree of protection (IP)

IP20

Motor drive integrated

No

Type of control element

Toggle

With integrated under voltage release

No


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs
