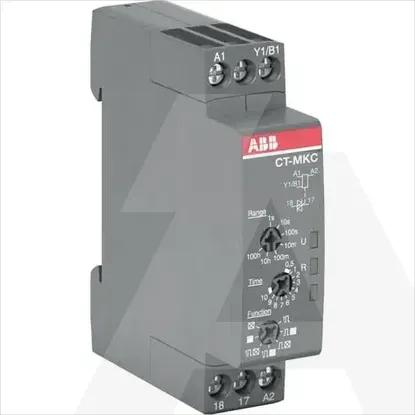

1SVR508010R1300 | CT-MKC.31
Code: 1885769
Order only
Zagreb0 pcs
Zadar0 pcs
Sign in or create an account for lower prices and other benefits
WSP*
92,89 €
Neto92,89 €
RP116,11 €
DetailsWarehouse statesTechnical specifications
Details
- Relays
- Timer relay
- 1 KOM
- ABB
Technical specifications
Height
70mm
Width
17.5mm
Depth
63mm
With plug-in socket
No
Suitable for front mounting
No
Type of electric connection
Screw connection
Complete with socket
No
Suitable for DIN rail (top hat rail) mounting
Yes
Suitable for front mounting
No
Pluggable on auxiliary contact block
No
Function delay-on energization
Yes
Function delay on de-energization
Yes
Function floating contact on energization
Yes
Function floating contact on de-energization
Yes
Function star-delta
No
Function pulse shaping
Yes
Function flashing, starting with pause, fixed time
Yes
Function flashing, starting with pulse, fixed time
Yes
Clock function, starting with pause, variable
No
Clock function, starting with pulse, variable
No
Time range
0.05 - 360000s
Remote operation possible
No
Suitable as remote control
No
Rated control supply voltage Us at AC 50HZ
12 - 240V
Rated control supply voltage Us at AC 60HZ
12 - 240V
Rated control supply voltage Us at DC
12 - 240V
Voltage type for actuating
AC/DC
Number of outputs, undelayed, normally closed contact
0
Number of outputs, undelayed, normally open contact
0
Number of outputs, undelayed, change-over contact
0
Number of outputs, delayed, normally closed contact
0
Number of outputs, delayed, normally open contact
0
Number of outputs, delayed, change-over contact
0
Outputs, reversible delayed/undelayed
No
With semiconductor output
Yes
Operating voltage at AC 50 Hz
250 - 250V
Operating voltage at AC 60 Hz
250 - 250V
Operating voltage at DC
- - -V
Voltage type (operating voltage)
AC/DC
Nominal current
1A
Max. starting current
-A
Degree of protection (IP)
IP20
Warehouse states
Zagreb:
0 pcs
Zadar:
0 pcs
From same serie
