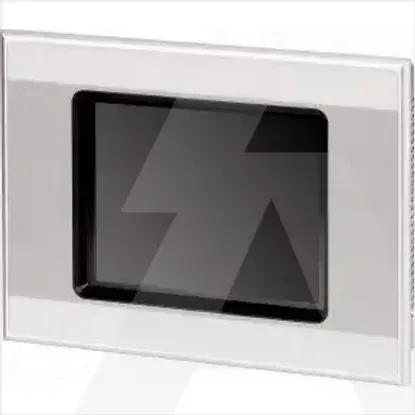

XV-363-57-C02-A00-1B

Supply voltage AC 50 Hz

0 - 0V

Supply voltage DC

19.2 - 30V

Supply voltage AC 60 Hz

0 - 0V

Power consumption

19.5W

Number of interfaces PROFINET

0

Number of HW-interfaces RS-485

1

Number of HW-interfaces industrial Ethernet

2

Voltage type of supply voltage

DC

Supporting protocol for PROFIBUS

Yes

Supporting protocol for TCP/IP

Yes

Number of HW-interfaces RS-232

1

Number of HW-interfaces parallel

0

Supporting protocol for CAN

Yes

Number of HW-interfaces USB

2

Supporting protocol for EtherCAT

Yes

Supporting protocol for INTERBUS

No

Supporting protocol for SUCONET

No

Number of HW-interfaces other

3

Supporting protocol for ASI

No

Number of HW-interfaces serial TTY

0

Supporting protocol for Data-Highway

No

Supporting protocol for Modbus

Yes

Supporting protocol for KNX

No

With SW interfaces

No

Supporting protocol for LON

No

Supporting protocol for DeviceNet

No

Number of HW-interfaces Wireless

0

Number of HW-interfaces RS-422

0

Number of pixels, horizontal

640

Useful project memory/user memory

512000kByte

Number of pixels, vertical

480

With numeric keyboard

Yes

Number of function buttons, programmable

0

With alpha numeric keyboard

Yes

Number of buttons with LED

0

Number of system buttons

1

Touch technology

Infrared touch

With message indication

Yes

Process default value (input) possible

Yes

With message system (incl. buffer and confirmation)

Yes

Process value representation (output) possible

Yes

With recipes

Yes

Number of password levels

200

With printer output

No

Number of online languages

100

Degree of protection (NEMA), front side

12

Additional software components, loadable

Yes

Certified for UL hazardous location class I

No

Degree of protection (IP), front side

IP65

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

No

Certified for UL hazardous location group A (acetylene)

No

Certified for UL hazardous location group B (hydrogen)

No

Certified for UL hazardous location group C (ethylene)

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for PROFINET IO

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for other bus systems

Yes

Supporting protocol for SafetyBUS p

No

Radio standard Wi-Fi 802.11

No

Radio standard UMTS

No

IO link master

No

Type of display

TFT

With colour display

Yes

Radio standard Bluetooth

No

Number of grey-scales/blue-scales of display

0

Screen diagonal

5.7inch

Supporting protocol for EtherNet/IP

Yes

Supporting protocol for DeviceNet Safety

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for PROFIsafe

No

Radio standard GPRS

No

Radio standard GSM

No

Certified for UL hazardous location group D (propane)

No

Certified for UL hazardous location group E (metal dusts)

No

Number of colours of the display

65536

Certified for UL hazardous location group F (carbonaceous dusts)

No

Certified for UL hazardous location group G (non-conductive dusts)

No

Rail mounting possible

No

Operating temperature

0 - 50°C

Suitable for safety functions

No

Width of the front

212.2mm

Height of the front

156.2mm

Built-in depth

63mm

Wall mounting/direct mounting

No

Supporting protocol for PROFINET CBA

No
