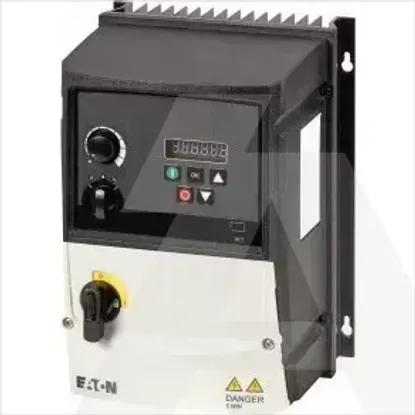

Main Product Image

DC1-S2011FB-A6SOE1

Code: 1871799

ManufacturerRAZNO
Catalog number199392
Type
EAN code4015081977819

Details

  • Low-voltage industrial components
  • Frequency converter =< 1 kV
  • 1 KOM
  • EATON

Technical specifications

Mains frequency

50/60 Hz

Mains voltage

200 - 240V

Number of phases output

1

Max. output frequency

500Hz

Max. output at linear load at rated output voltage

1.1kW

Nominal output current I2N

11A

Max. output voltage

250V

Relative symmetric net voltage tolerance

10%

Relative symmetric net frequency tolerance

10%

Power consumption

103.4W

Number of digital outputs

1

Max. output at quadratic load at rated output voltage

1.1kW

Number of analogue inputs

2

Number of analogue outputs

1

Supporting protocol for ASI

No

Number of phases input

1

Application in domestic- and commercial area permitted

Yes

Supporting protocol for Data-Highway

No

Supporting protocol for INTERBUS

No

Supporting protocol for TCP/IP

No

Supporting protocol for CAN

Yes

Supporting protocol for PROFIBUS

No

With control element

Yes

Supporting protocol for LON

No

Supporting protocol for KNX

No

Application in industrial area permitted

Yes

Number of digital inputs

4

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for Modbus

Yes

Supporting protocol for SUCONET

No

Supporting protocol for DeviceNet

No

Supporting protocol for SERCOS

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for EtherNet/IP

Yes

Supporting protocol for DeviceNet Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for other bus systems

Yes

Supporting protocol for SafetyBUS p

No

Supporting protocol for INTERBUS-Safety

No

Number of HW-interfaces RS-232

0

Supporting protocol for BACnet

No

Number of interfaces PROFINET

0

Number of HW-interfaces industrial Ethernet

0

Number of HW-interfaces RS-422

0

Number of HW-interfaces other

0

With optical interface

No

With PC connection

Yes

Integrated breaking resistance

Yes

4-quadrant operation possible

Yes

Degree of protection (NEMA)

4X

Type of converter

U converter

Degree of protection (IP)

IP66

Height

257mm

Width

188mm

Depth

182mm

Number of HW-interfaces serial TTY

0

Number of HW-interfaces RS-485

1

Number of HW-interfaces USB

0

Number of HW-interfaces parallel

0


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs
