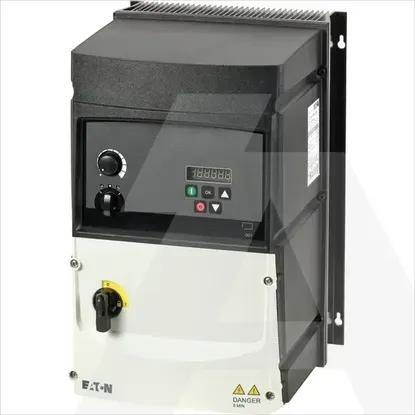

Details
- Low-voltage industrial components
- Frequency converter =< 1 kV
- 1 KOM
- EATON
Technical specifications
Number of phases input
3
Max. output frequency
500Hz
Mains frequency
50/60 Hz
Relative symmetric net frequency tolerance
10%
Number of phases output
3
Number of analogue outputs
1
Max. output voltage
500V
Max. output at linear load at rated output voltage
15kW
Max. output at quadratic load at rated output voltage
15kW
Relative symmetric net voltage tolerance
10%
Power consumption
607W
Nominal output current I2N
30A
With control element
Yes
Number of digital inputs
4
Mains voltage
380 - 480V
Application in industrial area permitted
Yes
Number of analogue inputs
2
Number of digital outputs
1
Supporting protocol for PROFIBUS
No
Application in domestic- and commercial area permitted
Yes
Supporting protocol for KNX
No
Supporting protocol for CAN
Yes
Supporting protocol for INTERBUS
No
Supporting protocol for Modbus
Yes
Supporting protocol for LON
No
Supporting protocol for Data-Highway
No
Supporting protocol for PROFINET IO
No
Supporting protocol for SUCONET
No
Supporting protocol for DeviceNet
No
Supporting protocol for ASI
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for TCP/IP
No
Supporting protocol for SERCOS
No
Number of HW-interfaces other
0
With optical interface
No
Integrated breaking resistance
Yes
With PC connection
Yes
Type of converter
U converter
4-quadrant operation possible
Yes
Degree of protection (IP)
IP66
Degree of protection (NEMA)
4X
Height
360mm
Depth
275mm
Width
240mm
Supporting protocol for EtherNet/IP
Yes
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for other bus systems
Yes
Number of HW-interfaces RS-232
0
Supporting protocol for BACnet
No
Number of HW-interfaces industrial Ethernet
0
Number of HW-interfaces RS-422
0
Number of HW-interfaces serial TTY
0
Number of HW-interfaces parallel
0
Number of HW-interfaces RS-485
1
Number of interfaces PROFINET
0
Number of HW-interfaces USB
0
Warehouse states
Zagreb:
0 pcs
Zadar:
0 pcs
