Aleta.hr

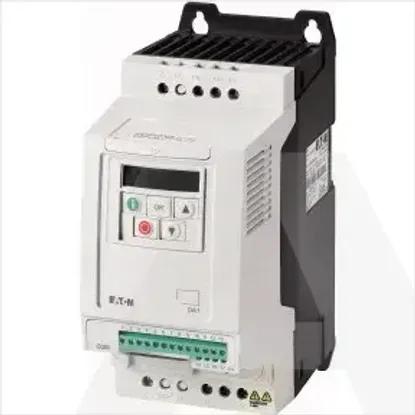

Main Product Image

DA1-359D0NB-A20C

Code: 1871733

ManufacturerRAZNO
Catalog number177038
Type
EAN code4015081714810

Details

  • Low-voltage industrial components
  • Frequency converter =< 1 kV
  • 1 KOM
  • EATON

Technical specifications

Mains frequency

50/60 Hz

Number of phases input

3

Max. output at linear load at rated output voltage

5.5kW

Nominal output current I2N

9A

Number of phases output

3

Mains voltage

500 - 600V

Relative symmetric net voltage tolerance

10%

Max. output at quadratic load at rated output voltage

5.5kW

Number of analogue inputs

2

Relative symmetric net frequency tolerance

10%

Power consumption

165W

Max. output frequency

500Hz

Number of analogue outputs

2

Max. output voltage

600V

Number of digital inputs

5

Application in industrial area permitted

Yes

Supporting protocol for PROFIBUS

Yes

Supporting protocol for TCP/IP

Yes

With control element

Yes

Supporting protocol for KNX

No

Supporting protocol for INTERBUS

No

Application in domestic- and commercial area permitted

Yes

Supporting protocol for CAN

Yes

Supporting protocol for ASI

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

Yes

Supporting protocol for SUCONET

No

Supporting protocol for Data-Highway

No

Supporting protocol for SERCOS

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for EtherNet/IP

Yes

Supporting protocol for DeviceNet

Yes

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for BACnet

No

Supporting protocol for other bus systems

Yes

Number of HW-interfaces industrial Ethernet

0

Number of interfaces PROFINET

0

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for SafetyBUS p

No

Number of HW-interfaces RS-422

0

Number of HW-interfaces serial TTY

0

Number of HW-interfaces RS-485

1

Number of HW-interfaces RS-232

0

Supporting protocol for Modbus

Yes

Number of digital outputs

2

With optical interface

No

Number of HW-interfaces other

0

With PC connection

Yes

Integrated breaking resistance

Yes

4-quadrant operation possible

Yes

Type of converter

U converter

Degree of protection (IP)

IP20

Degree of protection (NEMA)

Other

Height

231mm

Width

107mm

Depth

186mm

Number of HW-interfaces parallel

0

Number of HW-interfaces USB

0


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs
