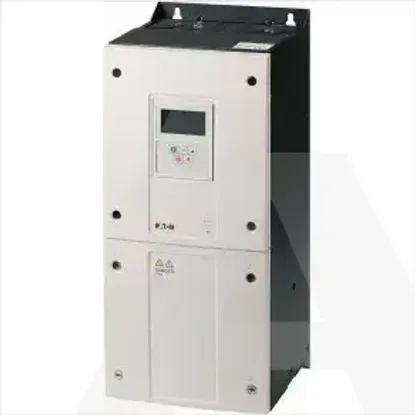

Main Product Image

DA1-35065NB-B55C

Code: 1871716

ManufacturerRAZNO
Catalog number176970
Type
EAN code4015081714131

Details

  • Low-voltage industrial components
  • Frequency converter =< 1 kV
  • 1 KOM
  • EATON

Technical specifications

Number of phases output

3

Mains voltage

500 - 600V

Mains frequency

50/60 Hz

Number of digital outputs

2

Max. output voltage

600V

Power consumption

1350W

Relative symmetric net frequency tolerance

10%

Max. output at quadratic load at rated output voltage

45kW

Max. output frequency

500Hz

Application in domestic- and commercial area permitted

Yes

Application in industrial area permitted

Yes

Nominal output current I2N

65A

Supporting protocol for TCP/IP

Yes

Number of analogue outputs

2

Relative symmetric net voltage tolerance

10%

Number of analogue inputs

2

Number of digital inputs

5

Supporting protocol for KNX

No

With control element

Yes

Supporting protocol for DeviceNet

Yes

Supporting protocol for Data-Highway

No

Supporting protocol for CAN

Yes

Supporting protocol for LON

No

Supporting protocol for SUCONET

No

Supporting protocol for INTERBUS

No

Supporting protocol for Modbus

Yes

Supporting protocol for EtherNet/IP

Yes

Max. output at linear load at rated output voltage

45kW

Supporting protocol for PROFINET CBA

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for SERCOS

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for ASI

No

Supporting protocol for PROFIBUS

Yes

Supporting protocol for PROFINET IO

Yes

Number of phases input

3

Number of HW-interfaces other

0

With optical interface

No

With PC connection

Yes

Integrated breaking resistance

Yes

Type of converter

U converter

4-quadrant operation possible

Yes

Degree of protection (IP)

IP55

Degree of protection (NEMA)

12

Height

540mm

Width

235mm

Depth

270mm

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for other bus systems

Yes

Supporting protocol for SafetyBUS p

No

Supporting protocol for BACnet

No

Number of HW-interfaces industrial Ethernet

0

Number of interfaces PROFINET

0

Number of HW-interfaces RS-422

0

Number of HW-interfaces RS-485

1

Number of HW-interfaces RS-232

0

Number of HW-interfaces USB

0

Number of HW-interfaces serial TTY

0

Number of HW-interfaces parallel

0


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs
