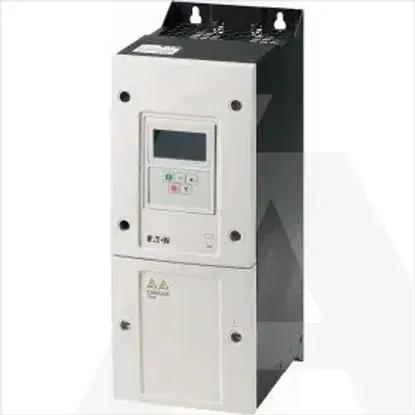

Details
- Low-voltage industrial components
- Frequency converter =< 1 kV
- 1 KOM
- EATON
Technical specifications
Mains frequency
50/60 Hz
Mains voltage
500 - 600V
Max. output at linear load at rated output voltage
15kW
Nominal output current I2N
22A
Number of phases output
3
Number of analogue outputs
2
Number of phases input
3
Power consumption
450W
Max. output voltage
600V
Max. output frequency
500Hz
Max. output at quadratic load at rated output voltage
15kW
Relative symmetric net frequency tolerance
10%
Relative symmetric net voltage tolerance
10%
Number of analogue inputs
2
Number of digital inputs
5
Application in industrial area permitted
Yes
With control element
Yes
Supporting protocol for CAN
Yes
Application in domestic- and commercial area permitted
Yes
Supporting protocol for TCP/IP
Yes
Supporting protocol for PROFIBUS
Yes
Number of digital outputs
2
Supporting protocol for KNX
No
Supporting protocol for DeviceNet
Yes
Supporting protocol for LON
No
Supporting protocol for INTERBUS
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
Yes
Supporting protocol for PROFINET IO
Yes
Supporting protocol for PROFINET CBA
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for SERCOS
No
Supporting protocol for SUCONET
No
Supporting protocol for Data-Highway
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for ASI
No
Supporting protocol for Modbus
Yes
Number of HW-interfaces other
0
With optical interface
No
With PC connection
Yes
Integrated breaking resistance
Yes
4-quadrant operation possible
Yes
Type of converter
U converter
Degree of protection (IP)
IP55
Degree of protection (NEMA)
12
Height
450mm
Width
173mm
Depth
240mm
Supporting protocol for SafetyBUS p
No
Supporting protocol for PROFIsafe
No
Number of interfaces PROFINET
0
Supporting protocol for BACnet
No
Number of HW-interfaces parallel
0
Supporting protocol for other bus systems
Yes
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-485
1
Number of HW-interfaces industrial Ethernet
0
Number of HW-interfaces USB
0
Number of HW-interfaces serial TTY
0
Warehouse states
Zagreb:
0 pcs
Zadar:
0 pcs
