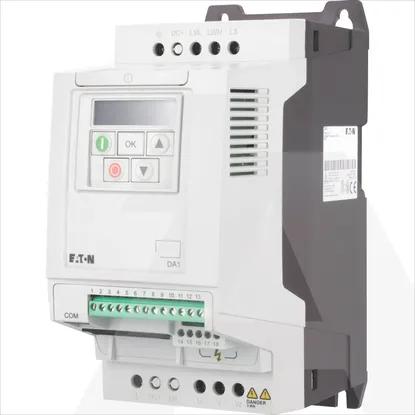

Main Product Image

DA1-342D2FB-A20C

Code: 1871684

ManufacturerRAZNO
Catalog number169117
Type
EAN code4015081655984

Details

  • Low-voltage industrial components
  • Frequency converter =< 1 kV
  • 1 KOM
  • EATON

Technical specifications

Number of phases input

3

Power consumption

63.75W

Number of phases output

3

Number of digital outputs

2

Relative symmetric net voltage tolerance

10%

Number of digital inputs

5

Number of analogue outputs

2

Max. output frequency

500Hz

Max. output at quadratic load at rated output voltage

0.75kW

Max. output at linear load at rated output voltage

0.75kW

Number of analogue inputs

2

Mains voltage

380 - 480V

Supporting protocol for Data-Highway

No

Mains frequency

50/60 Hz

Relative symmetric net frequency tolerance

10%

Supporting protocol for Modbus

Yes

Application in industrial area permitted

Yes

Supporting protocol for PROFIBUS

Yes

Supporting protocol for TCP/IP

Yes

Supporting protocol for LON

No

Supporting protocol for CAN

Yes

Supporting protocol for PROFINET IO

Yes

Supporting protocol for SUCONET

No

Supporting protocol for INTERBUS-Safety

No

With control element

Yes

Supporting protocol for DeviceNet

Yes

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Nominal output current I2N

2.2A

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for EtherNet/IP

Yes

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for SERCOS

No

Max. output voltage

500V

Application in domestic- and commercial area permitted

Yes

Supporting protocol for KNX

No

Supporting protocol for BACnet

No

Supporting protocol for PROFIsafe

No

With optical interface

No

Number of HW-interfaces other

0

With PC connection

Yes

4-quadrant operation possible

Yes

Integrated breaking resistance

Yes

Type of converter

U converter

Degree of protection (NEMA)

Other

Degree of protection (IP)

IP20

Height

231mm

Width

107mm

Depth

186mm

Number of HW-interfaces industrial Ethernet

0

Supporting protocol for other bus systems

Yes

Number of interfaces PROFINET

0

Number of HW-interfaces RS-232

0

Number of HW-interfaces RS-422

0

Number of HW-interfaces serial TTY

0

Number of HW-interfaces USB

0

Number of HW-interfaces RS-485

1

Number of HW-interfaces parallel

0


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs
