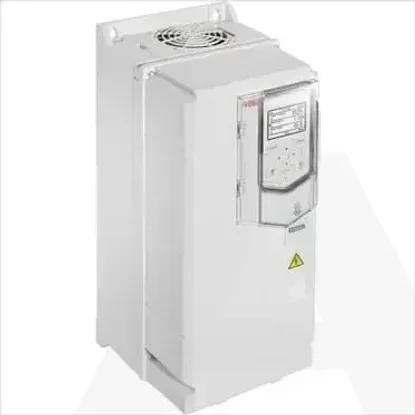

Main Product Image

ACH580-01-046A-4+B056 Pld: 18,5kW, Ild: 36A

Code: 1865277

ManufacturerRAZNO
Catalog number3AXD50000039014
Type
EAN code6438177459644

Details

  • Low-voltage industrial components
  • Frequency converter =< 1 kV
  • 1 KOM
  • ABB

Technical specifications

Mains frequency

50/60 Hz

Number of phases output

3

Mains voltage

380 - 480V

Max. output voltage

480V

Number of phases input

3

Nominal output current I2N

45A

Max. output frequency

500Hz

Relative symmetric net voltage tolerance

10%

Max. output at linear load at rated output voltage

22kW

Number of analogue inputs

2

Number of analogue outputs

2

Application in industrial area permitted

Yes

Max. output at quadratic load at rated output voltage

22kW

Number of digital inputs

6

Number of digital outputs

3

Relative symmetric net frequency tolerance

5%

With control element

Yes

Supporting protocol for Modbus

Yes

Supporting protocol for LON

Yes

Supporting protocol for CAN

Yes

Supporting protocol for EtherNet/IP

Yes

Supporting protocol for INTERBUS

No

Supporting protocol for PROFINET IO

Yes

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for TCP/IP

Yes

Supporting protocol for PROFIBUS

Yes

Supporting protocol for KNX

No

Supporting protocol for Data-Highway

No

Supporting protocol for ASI

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for DeviceNet Safety

Yes

Supporting protocol for DeviceNet

Yes

Supporting protocol for PROFIsafe

No

Supporting protocol for SUCONET

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for SERCOS

No

Application in domestic- and commercial area permitted

Yes

Supporting protocol for other bus systems

Yes

Supporting protocol for SafetyBUS p

No

Supporting protocol for BACnet

Yes

Number of HW-interfaces industrial Ethernet

0

Number of interfaces PROFINET

0

Number of HW-interfaces RS-232

0

Number of HW-interfaces USB

1

Number of HW-interfaces serial TTY

0

Number of HW-interfaces RS-485

1

Number of HW-interfaces RS-422

0

With PC connection

Yes

With optical interface

No

Number of HW-interfaces parallel

2

Number of HW-interfaces other

2

4-quadrant operation possible

No

Degree of protection (NEMA)

12

Integrated breaking resistance

No

Type of converter

U converter

Height

490.00mm

Degree of protection (IP)

IP55

Width

206.00mm

Depth

237.00mm


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs
