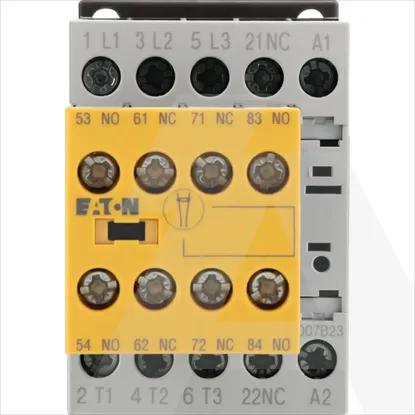

DILMS7-23(24VDC)

Rated control supply voltage Us at AC 50HZ

0 - 0V

Number of normally closed contacts as main contact

0

Rated operation current Ie at AC-4, 400 V

5A

Number of normally open contacts as main contact

3

Rated operation power at AC-4, 400 V

2.2kW

Depth

117mm

Rated operation current Ie at AC-1, 400 V

22A

Operating voltage at AC 50 Hz

24 - 690V

Rated operation power NEMA

2.2kW

Modular version

No

Rated control supply voltage Us at AC 60HZ

0 - 0V

Type of electrical connection of main circuit

Screw connection

Rated operation current Ie at AC-3, 400 V

7A

Number of auxiliary contacts as normally open contact

2

Operating voltage at AC 60 Hz

24 - 690V

Voltage type for actuating

DC

Number of auxiliary contacts as normally closed contact

3

Rated operation power at AC-3, 400 V

3kW

Width

45mm

Rated control supply voltage Us at DC

24 - 24V

Height

69mm
