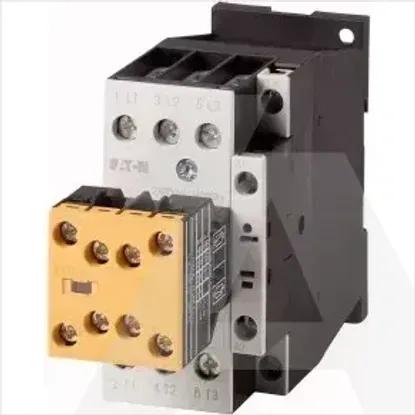

Details
- Low-voltage industrial components
- Power contactor, AC switching
- 1 KOM
- EATON
Technical specifications
Number of normally closed contacts as main contact
0
Rated control supply voltage Us at AC 60HZ
0 - 0V
Operating voltage at AC 60 Hz
24 - 690V
Type of electrical connection of main circuit
Screw connection
Rated operation current Ie at AC-3, 400 V
32A
Operating voltage at AC 50 Hz
24 - 690V
Number of normally open contacts as main contact
3
Voltage type for actuating
DC
Rated operation current Ie at AC-1, 400 V
45A
Rated control supply voltage Us at AC 50HZ
0 - 0V
Rated control supply voltage Us at DC
24 - 24V
Rated operation current Ie at AC-4, 400 V
15A
Rated operation power at AC-3, 400 V
15kW
Rated operation power NEMA
14.9kW
Number of auxiliary contacts as normally closed contact
3
Depth
138mm
Modular version
No
Number of auxiliary contacts as normally open contact
2
Rated operation power at AC-4, 400 V
7kW
Height
85mm
Width
45mm
Warehouse states
Zagreb:
0 pcs
Zadar:
0 pcs
From same serie
DILMS32-R23(RDC24)

Details
- Low-voltage industrial components
- Power contactor, AC switching
- 1 KOM
- EATON
Technical specifications
Number of normally closed contacts as main contact
0
Rated control supply voltage Us at AC 60HZ
0 .. 0V
Operating voltage at AC 60 Hz
24 .. 690V
Type of electrical connection of main circuit
Screw connection
Rated operation current Ie at AC-3, 400 V
32A
Operating voltage at AC 50 Hz
24 .. 690V
Number of normally open contacts as main contact
3
Voltage type for actuating
DC
Rated operation current Ie at AC-1, 400 V
45A
Rated control supply voltage Us at AC 50HZ
0 .. 0V
Rated control supply voltage Us at DC
24 .. 24V
Rated operation current Ie at AC-4, 400 V
15A
Rated operation power at AC-3, 400 V
15kW
Rated operation power NEMA
14.9kW
Number of auxiliary contacts as normally closed contact
3
Depth
138mm
Modular version
Number of auxiliary contacts as normally open contact
2
Rated operation power at AC-4, 400 V
7kW
Height
85mm
Width
45mm
