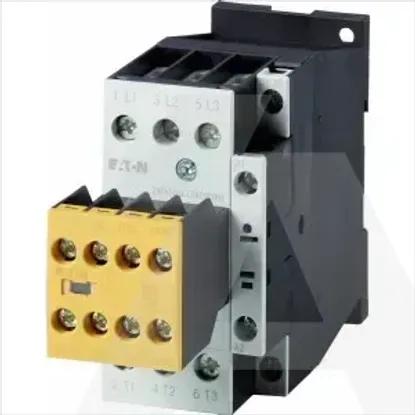

DILMS32-23(230V50HZ,240V60HZ)

Rated control supply voltage Us at AC 60HZ

240 - 240V

Rated control supply voltage Us at DC

0 - 0V

Rated control supply voltage Us at AC 50HZ

230 - 230V

Voltage type for actuating

AC

Number of normally closed contacts as main contact

0

Number of normally open contacts as main contact

3

Operating voltage at AC 50 Hz

24 - 690V

Rated operation current Ie at AC-3, 400 V

32A

Rated operation current Ie at AC-1, 400 V

45A

Operating voltage at AC 60 Hz

24 - 690V

Rated operation current Ie at AC-4, 400 V

15A

Rated operation power NEMA

14.9kW

Rated operation power at AC-3, 400 V

15kW

Number of auxiliary contacts as normally closed contact

3

Rated operation power at AC-4, 400 V

7kW

Number of auxiliary contacts as normally open contact

2

Height

85mm

Width

45mm

Modular version

No

Type of electrical connection of main circuit

Screw connection

Depth

139mm
