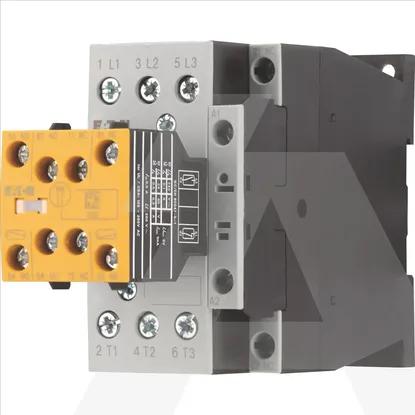

DILMS17-R23(RDC24)

Rated control supply voltage Us at AC 60HZ

0 - 0V

Operating voltage at AC 60 Hz

24 - 690V

Number of normally closed contacts as main contact

0

Number of normally open contacts as main contact

3

Rated control supply voltage Us at DC

24 - 24V

Rated control supply voltage Us at AC 50HZ

0 - 0V

Type of electrical connection of main circuit

Screw connection

Voltage type for actuating

DC

Rated operation current Ie at AC-3, 400 V

17A

Operating voltage at AC 50 Hz

24 - 690V

Rated operation power at AC-3, 400 V

7.5kW

Rated operation current Ie at AC-1, 400 V

40A

Rated operation power NEMA

7.4kW

Rated operation current Ie at AC-4, 400 V

10A

Number of auxiliary contacts as normally closed contact

3

Rated operation power at AC-4, 400 V

4.5kW

Depth

138mm

Modular version

No

Number of auxiliary contacts as normally open contact

2

Height

85mm

Width

45mm
