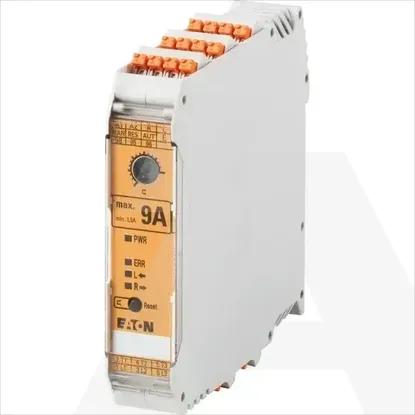

Main Product Image

EMS2-ROS-T-3-24VDC

Code: 1862927

ManufacturerRAZNO
Catalog number192394
Type
EAN code4015081930913

Details

  • Low-voltage industrial components
  • Motor starter/motor starter combination
  • 1 KOM
  • EATON

Technical specifications

Type of motor starter

Reversing starter

Rated control supply voltage Us at AC 50HZ

0 - 0V

Rated control supply voltage Us at AC 60HZ

0 - 0V

Rated control supply voltage Us at DC

24 - 24V

Rated operation power at AC-3, 400 V

1.1kW

Voltage type for actuating

DC

Rated power, 460 V, 60 Hz, 3-phase

0kW

Rated operation current at AC-3, 400 V

3A

Rated power, 575 V, 60 Hz, 3-phase

0kW

Rated operation current Ie

3A

With short-circuit release

No

Rated operation power at AC-3, 230 V, 3-phase

0.55kW

Overload release current setting

0.18 - 3A

Rated conditional short-circuit current, type 1, 480 Y/277 V

0A

Rated conditional short-circuit current, type 1, 600 Y/347 V

0A

Power consumption

2.5W

Rated conditional short-circuit current, type 2, 230 V

0A

Rated conditional short-circuit current, type 2, 400 V

0A

Number of auxiliary contacts as normally open contact

1

Number of auxiliary contacts as normally closed contact

1

Temperature compensated overload protection

Yes

Ambient temperature, upper operating limit

70°C

Type of electrical connection for auxiliary- and control current circuit

Spring clamp connection

Type of electrical connection of main circuit

Spring clamp connection

Release class

CLASS 10

Rail mounting possible

Yes

With transformer

No

Suitable for emergency stop

No

Number of command positions

0

External reset possible

No

Coordination class according to IEC 60947-4-3

Class 1

Number of indicator lights

0

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for other bus systems

No

Supporting protocol for SafetyBUS p

No

Width

22.5mm

Height

99mm

Depth

114.5mm

Degree of protection (IP)

IP20

With fuse

No

Degree of protection (NEMA)

Other

Supporting protocol for TCP/IP

No

Supporting protocol for CAN

No

Supporting protocol for PROFIBUS

No

Supporting protocol for ASI

No

Supporting protocol for INTERBUS

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for DeviceNet

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

No


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs
