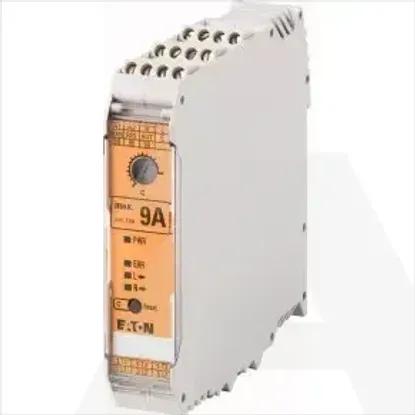

Main Product Image

EMS2-DOS-Z-3-24VDC

Code: 1862921

ManufacturerRAZNO
Catalog number197162
Type
EAN code4015080896036

Details

  • Low-voltage industrial components
  • Motor starter/motor starter combination
  • 1 KOM
  • EATON

Technical specifications

Rated control supply voltage Us at AC 60HZ

0 - 0V

Type of motor starter

Direct online starter (DOL)

Rated power, 460 V, 60 Hz, 3-phase

0kW

Rated operation current Ie

3A

With short-circuit release

No

Rated power, 575 V, 60 Hz, 3-phase

0kW

Rated operation power at AC-3, 400 V

1.1kW

Rated control supply voltage Us at DC

24 - 24V

Rated operation current at AC-3, 400 V

3A

Voltage type for actuating

DC

Rated operation power at AC-3, 230 V, 3-phase

0.55kW

Rated control supply voltage Us at AC 50HZ

0 - 0V

Rated conditional short-circuit current, type 1, 480 Y/277 V

0A

Rated conditional short-circuit current, type 2, 230 V

0A

Rated conditional short-circuit current, type 1, 600 Y/347 V

0A

Overload release current setting

0.18 - 3A

Rated conditional short-circuit current, type 2, 400 V

0A

Ambient temperature, upper operating limit

70°C

Type of electrical connection for auxiliary- and control current circuit

Screw connection

Power consumption

2.5W

Number of auxiliary contacts as normally open contact

1

Type of electrical connection of main circuit

Screw connection

Number of auxiliary contacts as normally closed contact

1

Rail mounting possible

Yes

Temperature compensated overload protection

Yes

Number of indicator lights

0

Release class

CLASS 10

Number of command positions

0

With transformer

No

External reset possible

No

Coordination class according to IEC 60947-4-3

Class 1

Supporting protocol for SUCONET

No

Supporting protocol for CAN

No

Degree of protection (IP)

IP20

Supporting protocol for INTERBUS

No

Supporting protocol for Modbus

No

Supporting protocol for ASI

No

Supporting protocol for DeviceNet

No

Degree of protection (NEMA)

Other

Supporting protocol for LON

No

With fuse

No

Supporting protocol for Data-Highway

No

Supporting protocol for PROFINET IO

No

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

No

Supporting protocol for EtherNet/IP

No

Suitable for emergency stop

No

Supporting protocol for SERCOS

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

No

Supporting protocol for Foundation Fieldbus

No

Height

99mm

Width

22.5mm

Depth

114.5mm

Supporting protocol for PROFINET CBA

No


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs
