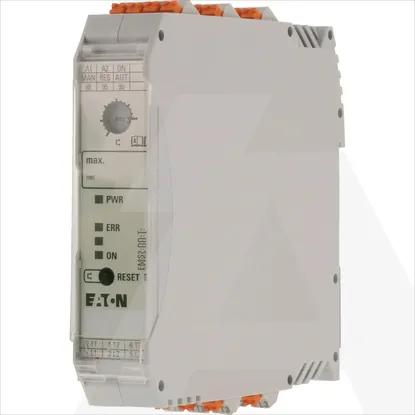

Main Product Image

EMS2-DO-T-9-24VDC

Code: 1862917

ManufacturerRAZNO
Catalog number192395
Type
EAN code4015081930920

Details

  • Low-voltage industrial components
  • Motor starter/motor starter combination
  • 1 KOM
  • EATON

Technical specifications

Rated control supply voltage Us at AC 50HZ

0 - 0V

With short-circuit release

No

Rated control supply voltage Us at AC 60HZ

0 - 0V

Rated operation power at AC-3, 400 V

3kW

Rated operation current at AC-3, 400 V

6.5A

Rated control supply voltage Us at DC

24 - 24V

Type of motor starter

Direct online starter (DOL)

Rated conditional short-circuit current, type 2, 400 V

0A

Rated conditional short-circuit current, type 1, 600 Y/347 V

0A

Rated power, 575 V, 60 Hz, 3-phase

0kW

Rated power, 460 V, 60 Hz, 3-phase

0kW

Overload release current setting

1.5 - 9A

Rated conditional short-circuit current, type 1, 480 Y/277 V

0A

Rated conditional short-circuit current, type 2, 230 V

0A

Power consumption

14.6W

Rated operation current Ie

9A

Voltage type for actuating

DC

Number of auxiliary contacts as normally closed contact

1

Rated operation power at AC-3, 230 V, 3-phase

1.5kW

Number of auxiliary contacts as normally open contact

1

Ambient temperature, upper operating limit

70°C

Suitable for emergency stop

No

Type of electrical connection of main circuit

Spring clamp connection

Release class

CLASS 10

Type of electrical connection for auxiliary- and control current circuit

Spring clamp connection

Rail mounting possible

Yes

External reset possible

No

Coordination class according to IEC 60947-4-3

Class 1

Number of indicator lights

0

Degree of protection (IP)

IP20

With transformer

No

Supporting protocol for TCP/IP

No

Number of command positions

0

Temperature compensated overload protection

Yes

Degree of protection (NEMA)

Other

Supporting protocol for ASI

No

Supporting protocol for CAN

No

Supporting protocol for Modbus

No

Supporting protocol for SERCOS

No

Supporting protocol for PROFIBUS

No

Supporting protocol for LON

No

Supporting protocol for DeviceNet

No

Supporting protocol for PROFINET IO

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for Data-Highway

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for INTERBUS

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for SUCONET

No

With fuse

No

Supporting protocol for SafetyBUS p

No

Width

22.5mm

Supporting protocol for other bus systems

No

Height

99mm

Depth

114.5mm

Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs
