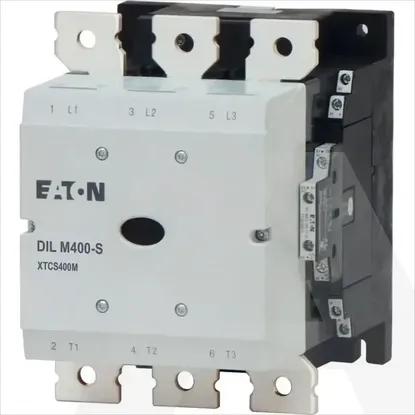

DILM400-S/22(220-240V50/60HZ)

Code: 1862624

ManufacturerRAZNO
Catalog number274196
Type
EAN code4015082741969

Details

  • Low-voltage industrial components
  • Power contactor, AC switching
  • 1 KOM
  • EATON

Technical specifications

Rated control supply voltage Us at AC 60HZ

220 - 240V

Voltage type for actuating

AC

Rated control supply voltage Us at AC 50HZ

220 - 240V

Type of electrical connection of main circuit

Rail connection

Number of normally closed contacts as main contact

0

Operating voltage at AC 60 Hz

220 - 240V

Rated operation current Ie at AC-1, 400 V

612A

Rated operation current Ie at AC-3, 400 V

400A

Rated operation power at AC-3, 400 V

200kW

Operating voltage at AC 50 Hz

220 - 240V

Rated control supply voltage Us at DC

0 - 0V

Number of normally open contacts as main contact

3

Rated operation power NEMA

223kW

Rated operation power at AC-4, 400 V

160kW

Number of auxiliary contacts as normally open contact

2

Rated operation current Ie at AC-4, 400 V

296A

Number of auxiliary contacts as normally closed contact

2

Modular version

No

Depth

216mm

Width

160mm

Height

209mm


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs
