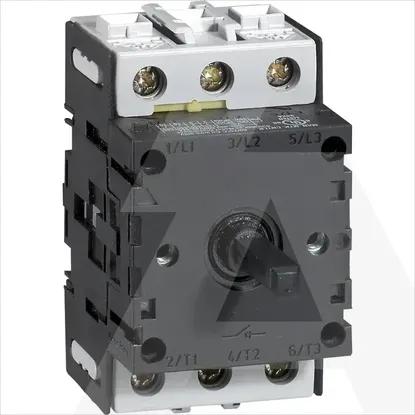

022110 | RASTAVNA SKLOPKA 25A

Code: 1859688

ManufacturerRAZNO
Catalog number022110
Type
EAN code3245060221102

Details

  • Low-voltage industrial components
  • Switch disconnector
  • 1 KOM
  • LEGRAND

Technical specifications

Number of poles

3

Number of auxiliary contacts as normally open contact

0

Rated permanent current Iu

25A

Number of auxiliary contacts as normally closed contact

0

Motor drive optional

No

Motor drive integrated

No

Type of electrical connection of main circuit

Screw connection

Number of auxiliary contacts as change-over contact

0

Degree of protection (IP), front side

IP40

Suitable for floor mounting

Yes

Suitable for intermediate mounting

No

Suitable for distribution board installation

No

Rated operation power at AC-3, 400 V

5.5kW

Max. rated operation voltage Ue AC

400V

Conditioned rated short-circuit current Iq

10kA

Rated operating voltage

690 - 690V

Version as reversing switch

No

Version as safety switch

No

Suitable for front mounting 4-hole

Yes

Rated permanent current at AC-21, 400 V

25A

Voltage release optional

No

Version as maintenance-/service switch

No

Interlockable

No

Switching power at 400 V

10kW

Number of switches

-

Rated permanent current at AC-23, 400 V

-A

Rated operation power at AC-23, 400 V

7.5kW

Suitable for front mounting centre

Yes

Rated short-time withstand current lcw

1kA

Version as emergency stop installation

No

Version as main switch

No


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs


From same serie
