Aleta.hr

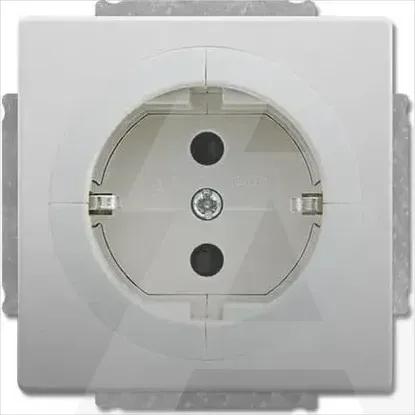

Main Product Image

2CKA002013A5408 | 20 EUAB-866

Code: 1858804

ManufacturerRAZNO
Catalog number2CKA002013A5408
Type
EAN code4011395228692

Details

  • Domestic switching devices
  • Socket outlet
  • 1 KOM
  • ABB

Technical specifications

Model

Protective contact (SCHUKO)

Surface protection

Lacquered

Mounting method

Flush mounted (plaster)

Surface finishing

Matt

Colour

Stainless steel

Material

Plastic

RAL-number (similar)

-

Halogen free

Yes

Type of fastening

Mounting with claw and screw

Material quality

Thermoplastic

Transparent

No

Impact strength

IK03

Suitable for degree of protection (IP)

IP20

Label space/information surface

No

Depth of device

-mm

Number of modules (module system)

-

Width of device

-mm

Nominal voltage

250V

Height of device

-mm

Frequency

50 - 50Hz

Connection type

Push-in clamp

Number of units

1

With hinged lid

No

Imprint/indication

Without imprint

Lockable

No

Anti-bacterial treatment

No

Insulated mounting

No

Over voltage protection

No

With enhanced contact protection

Yes

Fault current protection

No

With on/off switch

No

Rotated central insert

No

With function lighting

No

Rated fault current

-mA

Number of phases

1

Eject-mechanism

Yes

With built-in USB power supply

No

Min. depth of built-in installation box

40mm

With signal lamp

No

For heavy conditions (according to VDE)

No

With orientation lighting

No

With loop through function

Yes

With miniature fuse

No

Special power supply

No special power supply

Protective earth pin round

No

Protective contact

Yes

Number of active pins (round)

2

Concurrently switching neutral conductor

No

Maximum current rating of USB power supply

-A

Number of ports USB-C

-

Number of socket outlets switchable

-

Number of active pins (flat)

0

Number of ports USB-A

-

Metallic colour

No

Protective contact

Earthing clips

With Wi-Fi signal repeater

No

Compatible with Amazon Alexa

No

Compatible with Google Assistant

No

Number of loop throughs

-

Compatible with Apple HomeKit

No

IFTTT support available

No

For heavy conditions (according to VDE)

No

Number of active contacts (square)

0

With built-in bluetooth speaker

No

Compliant with UK Building Regulations Part M

No

Nominal current

16A


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs


From same serie

*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
