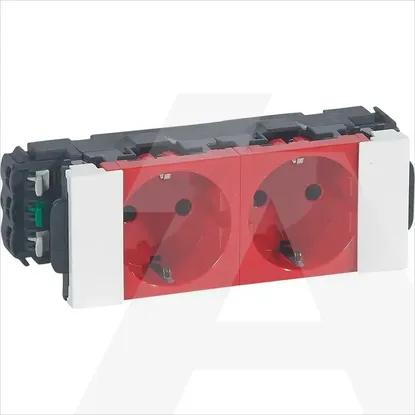

Main Product Image

077242 | MOSAIC 2X2P+E CRVENE

Code: 1851654

ManufacturerRAZNO
Catalog number077242
Type
EAN code3245060772420

Details

  • Domestic switching devices
  • Socket outlet
  • 10 KOM
  • LEGRAND

Technical specifications

Model

Protective contact (SCHUKO)

Mounting method

Wall duct

Surface finishing

Glossy

Material

Plastic

Surface protection

Untreated

RAL-number (similar)

3020

Type of fastening

Snap mounting (engagement)

Material quality

Thermoplastic

Halogen free

Yes

Colour

Red

Transparent

No

Impact strength

IK04

Suitable for degree of protection (IP)

IP40

Label space/information surface

No

Frequency

50 - 60Hz

Depth of device

48mm

Number of modules (module system)

4

Width of device

135mm

Nominal voltage

250V

Height of device

45mm

Number of units

2

Connection type

Pinching contact

With hinged lid

No

Imprint/indication

Without imprint

Lockable

No

Anti-bacterial treatment

No

Insulated mounting

No

Over voltage protection

No

With on/off switch

No

Rotated central insert

No

Fault current protection

No

With function lighting

No

With enhanced contact protection

Yes

Number of phases

1

For heavy conditions (according to VDE)

No

Eject-mechanism

No

With built-in USB power supply

No

Rated fault current

-mA

Min. depth of built-in installation box

-mm

With signal lamp

No

Number of socket outlets switchable

0

With loop through function

Yes

With orientation lighting

No

With miniature fuse

No

Special power supply

Additional safety power supply (red)

Protective earth pin round

No

Number of active pins (round)

1

Protective contact

Yes

Number of active pins (flat)

0

Nominal current

16A


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs


From same serie

*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
