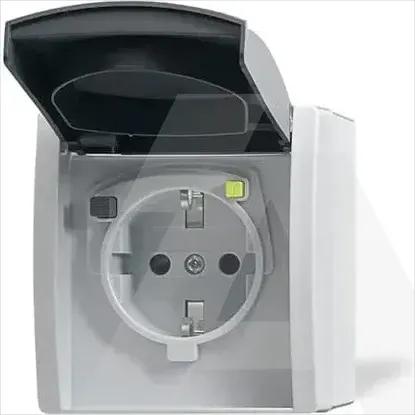

Main Product Image

2CKA003116A0664 | 3120 EWB-53

Code: 1789518

ManufacturerRAZNO
Catalog number2CKA003116A0664
Type
EAN code4011395210222

Details

  • Domestic switching devices
  • Socket outlet
  • 1 KOM
  • ABB

Technical specifications

Model

Protective contact (SCHUKO)

Mounting method

Surface mounted (plaster)

Type of fastening

Mounting with claw and screw

Surface finishing

Glossy

Colour

Grey

Material

Plastic

Surface protection

Untreated

RAL-number (similar)

7035

Material quality

Thermoplastic

Halogen free

Yes

Transparent

No

Suitable for degree of protection (IP)

IP44

Impact strength

IK04

Label space/information surface

No

Connection type

Push-in clamp

Depth of device

55mm

With hinged lid

No

Number of modules (module system)

1

Width of device

74mm

Nominal voltage

250V

Height of device

83mm

Frequency

50 - 50Hz

Number of units

1

Imprint/indication

Without imprint

Lockable

No

Anti-bacterial treatment

No

Insulated mounting

Yes

Rotated central insert

No

With function lighting

No

Fault current protection

Yes

With enhanced contact protection

Yes

With on/off switch

No

For heavy conditions (according to VDE)

No

Eject-mechanism

No

With built-in USB power supply

No

Over voltage protection

No

With signal lamp

No

Number of phases

1

Rated fault current

30mA

With orientation lighting

No

With loop through function

Yes

With miniature fuse

No

Special power supply

No special power supply

Protective earth pin round

No

Number of active pins (round)

2

Protective contact

Yes

Number of ports USB-A

-

Number of active contacts (square)

0

Number of active pins (flat)

0

Number of socket outlets switchable

-

Protective contact

Earthing clips

Concurrently switching neutral conductor

No

Maximum current rating of USB power supply

-A

Metallic colour

No

Number of loop throughs

-

Number of ports USB-C

-

Compatible with Apple HomeKit

No

With Wi-Fi signal repeater

No

Min. depth of built-in installation box

0mm

Compatible with Google Assistant

No

With built-in bluetooth speaker

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Compliant with UK Building Regulations Part M

No

For heavy conditions (according to VDE)

No

Nominal current

16A


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs


From same serie
