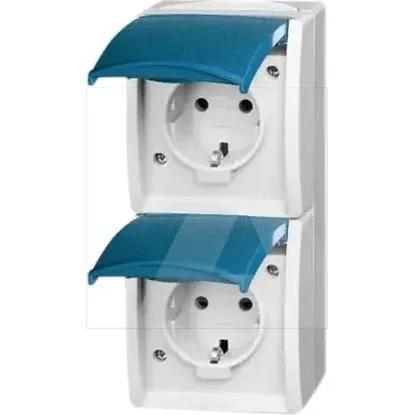

Main Product Image

2CKA002084A0701 | 20-02 EW-53

Code: 1789393

ManufacturerRAZNO
Catalog number2CKA002084A0701
Type
EAN code4011395993347

Details

  • Domestic switching devices
  • Socket outlet
  • 1 KOM
  • ABB

Technical specifications

Model

Protective contact (SCHUKO)

Surface protection

Untreated

Mounting method

Surface mounted (plaster)

RAL-number (similar)

7035

Halogen free

Yes

Type of fastening

Mounting with screw

Material quality

Thermoplastic

Surface finishing

Matt

Material

Plastic

Colour

Cyan (blue-green)

Transparent

No

Suitable for degree of protection (IP)

IP44

Impact strength

IK04

Number of modules (module system)

1

Width of device

74mm

Nominal voltage

250V

Height of device

167mm

Frequency

50 - 50Hz

Label space/information surface

No

Number of units

2

With hinged lid

Yes

Connection type

Push-in clamp

Depth of device

55mm

Imprint/indication

Without imprint

Lockable

No

Anti-bacterial treatment

No

Insulated mounting

Yes

With signal lamp

No

Over voltage protection

No

Rotated central insert

No

With enhanced contact protection

No

With on/off switch

No

Fault current protection

No

Eject-mechanism

No

For heavy conditions (according to VDE)

No

With built-in USB power supply

No

Number of phases

1

With function lighting

No

With orientation lighting

No

With loop through function

Yes

With miniature fuse

No

Special power supply

No special power supply

Protective earth pin round

No

Number of active pins (round)

2

Protective contact

Yes

Number of active pins (flat)

0

Number of active contacts (square)

0

Number of ports USB-A

-

Protective contact

Earthing clips

Number of ports USB-C

-

Number of socket outlets switchable

-

Number of loop throughs

-

Rated fault current

0mA

Concurrently switching neutral conductor

No

Maximum current rating of USB power supply

-A

Compatible with Amazon Alexa

No

Compatible with Apple HomeKit

No

With Wi-Fi signal repeater

No

Min. depth of built-in installation box

0mm

Metallic colour

No

IFTTT support available

No

Compatible with Google Assistant

No

Compliant with UK Building Regulations Part M

No

For heavy conditions (according to VDE)

No

With built-in bluetooth speaker

No

Nominal current

16A


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs


From same serie
