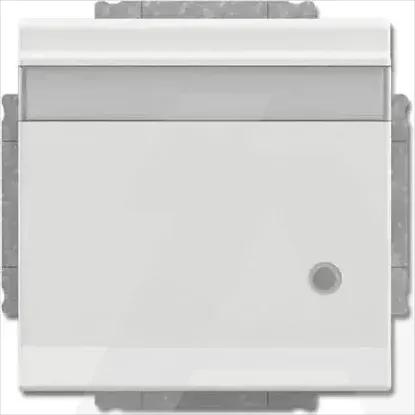

Main Product Image

2CKA002018A1552 | 20 EUKNBL-884

Code: 1789324

ManufacturerRAZNO
Catalog number2CKA002018A1552
Type
EAN code4011395229545

Details

  • Domestic switching devices
  • Socket outlet
  • 1 KOM
  • ABB

Technical specifications

Model

Protective contact (SCHUKO)

Surface protection

Lacquered

Mounting method

Flush mounted (plaster)

Halogen free

Yes

Material quality

Thermoplastic

Surface finishing

Matt

Material

Plastic

Colour

White

Type of fastening

Mounting with claw and screw

RAL-number (similar)

9016

Impact strength

IK03

Suitable for degree of protection (IP)

IP20

Transparent

No

Label space/information surface

Yes

Depth of device

32mm

Number of modules (module system)

1

Width of device

71mm

Nominal voltage

250V

Height of device

12mm

Frequency

50 - 50Hz

With hinged lid

Yes

Connection type

Push-in clamp

Number of units

1

Imprint/indication

Without imprint

Lockable

No

Anti-bacterial treatment

No

Insulated mounting

Yes

Over voltage protection

No

With enhanced contact protection

Yes

With on/off switch

No

Fault current protection

No

For heavy conditions (according to VDE)

No

With signal lamp

Yes

Rotated central insert

No

Eject-mechanism

No

With function lighting

Yes

With built-in USB power supply

No

Number of phases

1

Min. depth of built-in installation box

40mm

With orientation lighting

No

With miniature fuse

No

With loop through function

Yes

Special power supply

No special power supply

Protective earth pin round

No

Protective contact

Yes

Number of active pins (round)

2

Number of active pins (flat)

0

Protective contact

Earthing clips

Concurrently switching neutral conductor

No

Number of ports USB-A

-

Number of active contacts (square)

0

Number of socket outlets switchable

-

Number of ports USB-C

-

Metallic colour

No

Maximum current rating of USB power supply

-A

Number of loop throughs

-

Rated fault current

0mA

Compatible with Amazon Alexa

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

IFTTT support available

No

With built-in bluetooth speaker

No

With Wi-Fi signal repeater

No

For heavy conditions (according to VDE)

No

Compliant with UK Building Regulations Part M

No

Nominal current

16A


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs


From same serie
