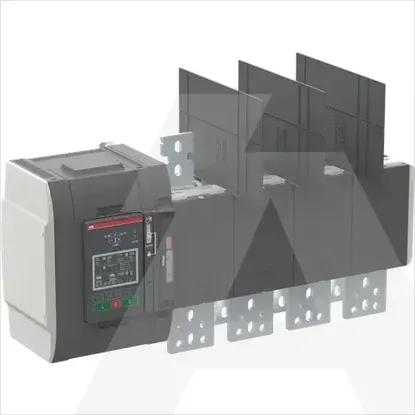

1SCA153610R1001 | OXB1250E3S2QB

Rated permanent current Iu

-A

Rated operation power at AC-3, 400 V

-kW

Conditioned rated short-circuit current Iq

-kA

Rated operating voltage

- - -V

Rated operation power at AC-23, 400 V

-kW

Rated permanent current at AC-21, 400 V

-A

Switching power at 400 V

-kW

Rated permanent current at AC-23, 400 V

-A

Number of auxiliary contacts as normally closed contact

0

Number of auxiliary contacts as change-over contact

0

Number of auxiliary contacts as normally open contact

0

Version as maintenance-/service switch

Yes

Number of switches

1

Version as main switch

Yes

Max. rated operation voltage Ue AC

480V

Version as reversing switch

No

Rated short-time withstand current lcw

65kA

Version as safety switch

No

Version as emergency stop installation

No

Motor drive integrated

Yes

Voltage release optional

No

Device construction

Built-in device plug-in technique

Suitable for floor mounting

No

Suitable for distribution board installation

Yes

Suitable for front mounting centre

No

Motor drive optional

No

Suitable for front mounting 4-hole

Yes

Number of poles

4

Suitable for intermediate mounting

No

Interlockable

No

Degree of protection (IP), front side

IP20

Degree of protection (NEMA)

1

Type of electrical connection of main circuit

Bolt connection

Type of control element

Long turning handle
