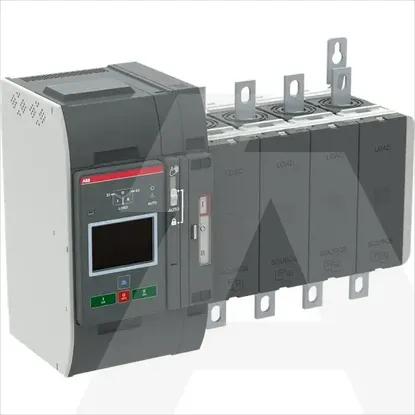

Main Product Image

1SCA153504R1001 | OXB315E3S4QB

Code: 1785759

ManufacturerRAZNO
Catalog number1SCA153504R1001
Type
EAN code6417019845302

Details

  • Low-voltage industrial components
  • Switch disconnector
  • 1 KOM
  • ABB

Technical specifications

Rated permanent current Iu

-A

Rated operation power at AC-3, 400 V

-kW

Conditioned rated short-circuit current Iq

-kA

Rated operating voltage

- - -V

Rated operation power at AC-23, 400 V

-kW

Rated permanent current at AC-21, 400 V

-A

Switching power at 400 V

-kW

Rated permanent current at AC-23, 400 V

-A

Number of auxiliary contacts as normally closed contact

0

Number of auxiliary contacts as change-over contact

0

Number of auxiliary contacts as normally open contact

0

Version as main switch

Yes

Version as maintenance-/service switch

Yes

Version as safety switch

No

Version as reversing switch

No

Version as emergency stop installation

No

Rated short-time withstand current lcw

25kA

Number of switches

1

Max. rated operation voltage Ue AC

480V

Number of poles

4

Suitable for floor mounting

No

Motor drive integrated

Yes

Suitable for front mounting centre

No

Device construction

Built-in device plug-in technique

Suitable for front mounting 4-hole

Yes

Suitable for intermediate mounting

No

Degree of protection (IP), front side

IP20

Type of control element

Long turning handle

Suitable for distribution board installation

Yes

Degree of protection (NEMA)

1

Type of electrical connection of main circuit

Bolt connection

Interlockable

No

Motor drive optional

No

Voltage release optional

No


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs


From same serie

*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
