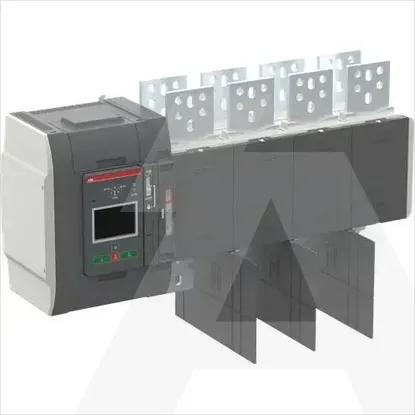

1SCA152413R1001 | OXB1600E3S4QT

Rated permanent current Iu

-A

Rated operation power at AC-3, 400 V

-kW

Rated operating voltage

- - -V

Conditioned rated short-circuit current Iq

-kA

Rated operation power at AC-23, 400 V

-kW

Rated permanent current at AC-21, 400 V

-A

Switching power at 400 V

-kW

Rated permanent current at AC-23, 400 V

-A

Number of auxiliary contacts as normally open contact

0

Number of auxiliary contacts as normally closed contact

0

Number of auxiliary contacts as change-over contact

0

Version as main switch

Yes

Version as emergency stop installation

No

Version as reversing switch

No

Version as safety switch

No

Max. rated operation voltage Ue AC

480V

Device construction

Built-in device plug-in technique

Number of switches

1

Number of poles

4

Rated short-time withstand current lcw

65kA

Suitable for floor mounting

No

Voltage release optional

No

Version as maintenance-/service switch

Yes

Interlockable

No

Suitable for distribution board installation

Yes

Suitable for front mounting 4-hole

Yes

Suitable for intermediate mounting

No

Suitable for front mounting centre

No

Degree of protection (IP), front side

IP20

Motor drive integrated

Yes

Motor drive optional

No

Type of electrical connection of main circuit

Bolt connection

Type of control element

Long turning handle

Degree of protection (NEMA)

1
