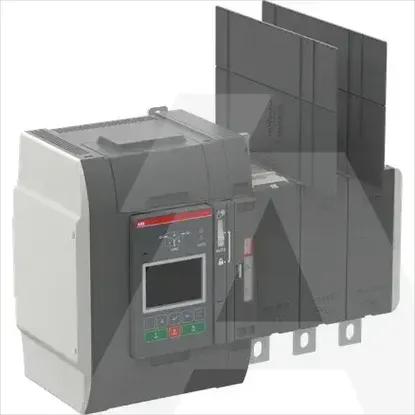

1SCA151064R1001 | OXB630E3X3QB

Rated permanent current Iu

-A

Rated operation power at AC-3, 400 V

-kW

Conditioned rated short-circuit current Iq

-kA

Rated operating voltage

- - -V

Rated permanent current at AC-21, 400 V

-A

Rated operation power at AC-23, 400 V

-kW

Switching power at 400 V

-kW

Rated permanent current at AC-23, 400 V

-A

Number of auxiliary contacts as normally closed contact

0

Number of auxiliary contacts as normally open contact

0

Number of auxiliary contacts as change-over contact

0

Version as main switch

Yes

Version as maintenance-/service switch

Yes

Version as safety switch

No

Version as emergency stop installation

No

Number of switches

1

Version as reversing switch

No

Max. rated operation voltage Ue AC

480V

Number of poles

3

Rated short-time withstand current lcw

42kA

Motor drive integrated

Yes

Motor drive optional

No

Voltage release optional

No

Device construction

Built-in device plug-in technique

Suitable for floor mounting

No

Suitable for front mounting 4-hole

Yes

Suitable for front mounting centre

No

Suitable for distribution board installation

Yes

Type of control element

Long turning handle

Interlockable

No

Type of electrical connection of main circuit

Bolt connection

Suitable for intermediate mounting

No

Degree of protection (NEMA)

1

Degree of protection (IP), front side

IP20
