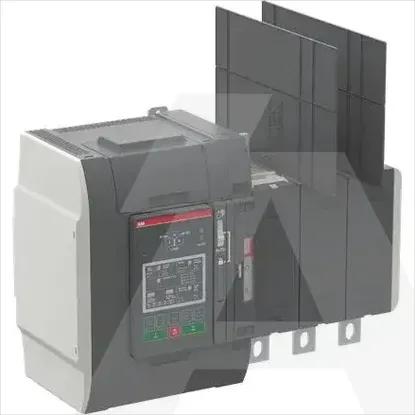

1SCA149960R1001 | OXB800E3X2QB

Rated permanent current Iu

-A

Rated operation power at AC-3, 400 V

-kW

Rated operating voltage

- - -V

Conditioned rated short-circuit current Iq

-kA

Rated permanent current at AC-21, 400 V

-A

Switching power at 400 V

-kW

Rated operation power at AC-23, 400 V

-kW

Rated permanent current at AC-23, 400 V

-A

Number of auxiliary contacts as normally open contact

0

Number of auxiliary contacts as change-over contact

0

Number of auxiliary contacts as normally closed contact

0

Number of switches

1

Version as reversing switch

No

Version as main switch

Yes

Max. rated operation voltage Ue AC

480V

Version as maintenance-/service switch

Yes

Rated short-time withstand current lcw

42kA

Version as safety switch

No

Version as emergency stop installation

No

Motor drive integrated

Yes

Number of poles

3

Motor drive optional

No

Voltage release optional

No

Device construction

Built-in device plug-in technique

Suitable for floor mounting

No

Interlockable

No

Suitable for front mounting 4-hole

Yes

Suitable for front mounting centre

No

Suitable for intermediate mounting

No

Suitable for distribution board installation

Yes

Degree of protection (IP), front side

IP20

Type of control element

Long turning handle

Type of electrical connection of main circuit

Bolt connection

Degree of protection (NEMA)

1
