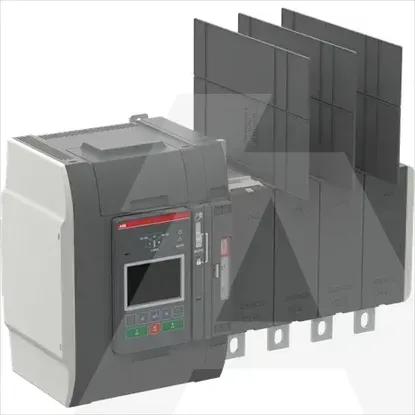

1SCA149958R1001 | OXB800E3S3QB

Rated permanent current Iu

-A

Rated operation power at AC-3, 400 V

-kW

Rated operating voltage

- - -V

Conditioned rated short-circuit current Iq

-kA

Rated permanent current at AC-21, 400 V

-A

Switching power at 400 V

-kW

Rated operation power at AC-23, 400 V

-kW

Rated permanent current at AC-23, 400 V

-A

Number of auxiliary contacts as change-over contact

0

Number of auxiliary contacts as normally closed contact

0

Number of auxiliary contacts as normally open contact

0

Version as maintenance-/service switch

Yes

Number of poles

4

Rated short-time withstand current lcw

42kA

Version as reversing switch

No

Version as main switch

Yes

Max. rated operation voltage Ue AC

480V

Version as safety switch

No

Number of switches

1

Version as emergency stop installation

No

Device construction

Built-in device plug-in technique

Motor drive integrated

Yes

Motor drive optional

No

Interlockable

No

Suitable for floor mounting

No

Voltage release optional

No

Degree of protection (IP), front side

IP20

Suitable for distribution board installation

Yes

Type of electrical connection of main circuit

Bolt connection

Suitable for front mounting centre

No

Type of control element

Long turning handle

Degree of protection (NEMA)

1

Suitable for intermediate mounting

No

Suitable for front mounting 4-hole

Yes
