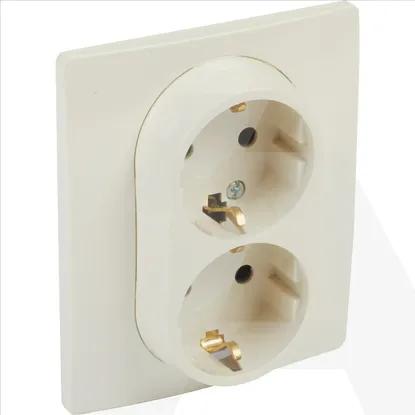

Main Product Image

764634 | NIL UTIC 2X2P+E BEZ DJ ZAS KRE

Code: 1782285

ManufacturerRAZNO
Catalog number764634
Type
EAN code3414971001008

Details

  • Domestic switching devices
  • Socket outlet
  • 10 KOM
  • LEGRAND

Technical specifications

Model

Protective contact (SCHUKO)

RAL-number (similar)

1013

Halogen free

Yes

Mounting method

Flush mounted (plaster)

Type of fastening

Mounting with claw and screw

Surface finishing

Glossy

Colour

Beige

Material

Plastic

Surface protection

Untreated

Material quality

Thermoplastic

Transparent

No

Impact strength

IK04

Suitable for degree of protection (IP)

IP31

Label space/information surface

No

Depth of device

44mm

Number of modules (module system)

-

Width of device

86mm

Nominal voltage

250V

Height of device

104mm

Frequency

50 - 60Hz

With hinged lid

No

Number of units

1

Connection type

Screwed terminal

Imprint/indication

Without imprint

Lockable

No

Anti-bacterial treatment

No

Insulated mounting

No

Over voltage protection

No

Fault current protection

No

With on/off switch

No

With enhanced contact protection

No

With function lighting

No

Eject-mechanism

No

For heavy conditions (according to VDE)

No

Number of phases

1

With built-in USB power supply

No

Rotated central insert

No

Rated fault current

-mA

Min. depth of built-in installation box

-mm

With signal lamp

No

With orientation lighting

No

With loop through function

No

Number of socket outlets switchable

0

With miniature fuse

No

Special power supply

No special power supply

Protective earth pin round

No

Number of active pins (round)

1

Protective contact

Yes

Number of active pins (flat)

0

Nominal current

16A


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs


From same serie
