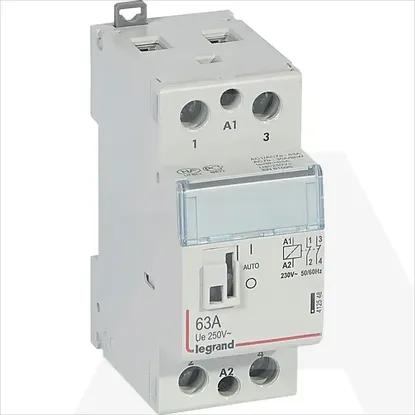

412548 | CX3-SKLOPNIK 63A 2NC 230V

Code: 1779244

ManufacturerRAZNO
Catalog number412548
Type
EAN code3245064125482

Details

  • Devices for distribution board-/surface mounting
  • Installation contactor for distribution board
  • 1 KOM
  • LEGRAND

Technical specifications

Degree of protection (IP)

IP2X

Built-in depth

44mm

Number of contacts as normally closed contact

2

Additional equipment possible

Yes

Number of contacts as normally open contact

0

Rated operating voltage

250 - 250V

Number of modular spacings

2

Max. incandescent lamp load

8000W

Max. load fluorescent lamp (parallel compensated)

1700VA

Max. load fluorescent lamp

4700VA

Max. load fluorescent lamp (Duo circuit)

5000VA

Rated operation current

63A

Voltage type (operating voltage)

AC

Utility category

1

Slider for hand switch

Yes

Voltage type (excitation voltage)

AC

Rated excitation voltage

195 - 253V


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs
