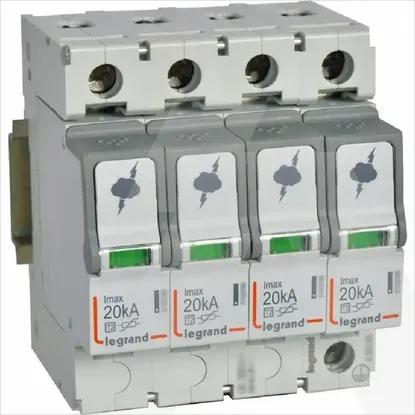

412223 | ODV PREN KL2 20KA 4P

Code: 1779148

Degree of protection (IP)

IP20

Mounting method

DIN rail (top hat rail) 35 mm

Construction size

4 modular spacing

Max. continuous voltage AC

320V

Number of conductors (without earthing)

4

Signalling at the device

Optic

Max. continuous voltage DC

-V

Voltage protection level

1.2kV

Nominal voltage AC

230V

Voltage protection level L-N

-kV

Max. conductor cross section flexible (fine-strand)

25mm²

Max. conductor cross section solid (solid, stranded)

35mm²

Integrated backup fuse

No

Nominal voltage DC

-V

With remote signalling contact

No

Nominal discharge surge current (8/20)

5kA

Voltage protection level N-PE

-kV

System configuration TN

No

System configuration DC

No

System configuration TN-S

Yes

System configuration IT

No

System configuration other

No

System configuration TT

No

System configuration TN-C

No

System configuration TN-C-S

No

Max. PV-voltage

-V

Category type 2

Yes

Max. discharge surge current (8/20)

-kA

Short-circuit breaking capacity (Isccr)

-kA
