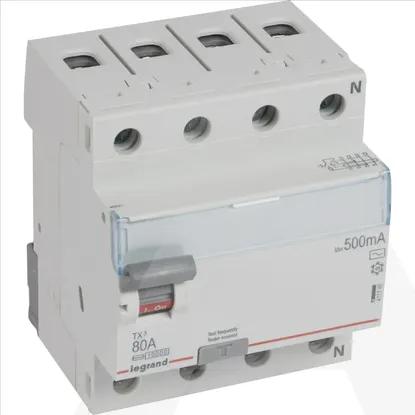

411740 | TX3 FID 4PD 80A AC 500MA
Code: 1779038
Order only
Zagreb0 pcs
Zadar0 pcs
Sign in or create an account for lower prices and other benefits
WSP*
63,78 €
Neto63,78 €
RP79,73 €
DetailsWarehouse statesTechnical specifications
Details
- Circuit breakers and fuses
- Residual current circuit breaker (RCCB)
- 1 KOM
- LEGRAND
Technical specifications
Degree of protection (IP)
IP20
Mounting method
DIN rail
Number of poles
4
Built-in depth
44mm
Rated voltage
400V
Rated current
80A
Width in number of modular spacings
4
Ambient temperature during operating
-25 - 60°C
Connectable conductor cross section multi-wired
0.75 - 35mm²
Connectable conductor cross section solid-core
0.75 - 50mm²
Rated impulse withstand voltage Uimp
4kV
Rated insulation voltage Ui
500V
Additional equipment possible
Yes
Pollution degree
2
Frequency
50 Hz
Surge current capacity
0.25kA
Leakage current type
AC
With interlocking device
Yes
Rated fault current
500mA
Short-circuit breaking capacity (Icw)
10kA
Selective protection
No
Short-time delayed tripping
No
Warehouse states
Zagreb:
0 pcs
Zadar:
0 pcs
From same serie
