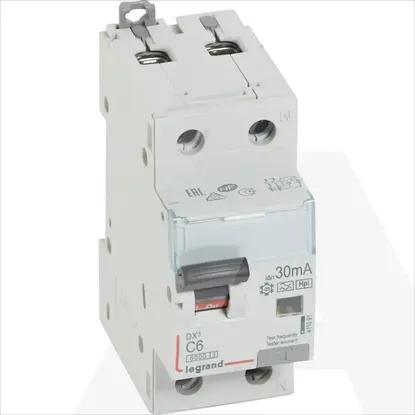

411091 | KZS DX3 1P+ND C6 6KA HPI 30MA

Code: 1778823

Degree of protection (IP)

IP20

Voltage type

AC

Rated current

6A

Width in number of modular spacings

2

Rated voltage

230V

Suitable for flush-mounted installation

Yes

Built-in depth

44mm

Release characteristic

C

Ambient temperature during operating

- - -°C

Connectable conductor cross section solid-core

0.75 - 16mm²

Number of protected poles

1

Rated impulse withstand voltage Uimp

-kV

Number of poles (total)

2

Rated insulation voltage Ui

-V

Current limiting class

3

Pollution degree

2

Over voltage category

-

Connectable conductor cross section multi-wired

0.75 - 10mm²

Concurrently switching neutral conductor

Yes

Frequency

50 Hz

Surge current capacity

3kA

Leakage current type

F

With interlocking device

Yes

Rated fault current

0.03A

Anti-nuisance tripping version

Yes

Rated short-circuit breaking capacity according to IEC 60947-2

6kA

Rated short-circuit breaking capacity Icn according to EN 61009-1

6kA

Rated short-circuit breaking capacity according to EN 61009

6kA
