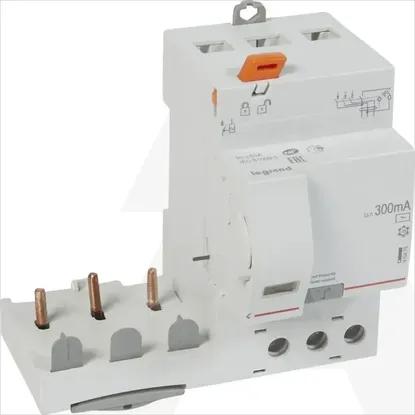

410475 | DIF.MOD.DX3 3P 63A AC 300MA
Code: 1778700
Details
- Circuit breakers and fuses
- Residual current circuit breaker (RCCB) module
- 1 KOM
- LEGRAND
Technical specifications
Degree of protection (IP)
IP20
Number of poles
3
Ambient temperature during operating
-25 - 70°C
Connectable conductor cross section multi-wired
1.5 - 25mm²
Rated impulse withstand voltage Uimp
4kV
Rated insulation voltage Ui
500V
Pollution degree
2
Connectable conductor cross section solid-core
1.5 - 35mm²
Nominal voltage
250 - 440V
Frequency
50 Hz
Leakage current type
AC
With interlocking device
Yes
Surge current capacity
-kA
Anti-nuisance tripping version
No
Rated fault current
0.3 - 0.3A
Delay adjustable
No
Max. delay time
0ms
Rated fault current adjustable
No
Nominal current
63A
Warehouse states
Zagreb:
0 pcs
Zadar:
0 pcs
From same serie
