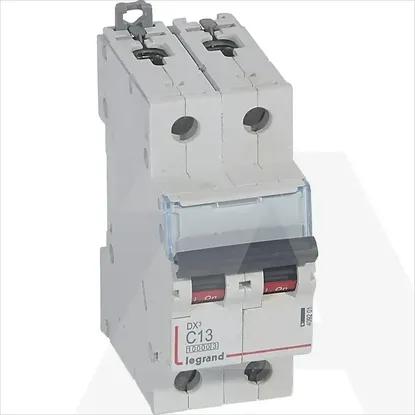

409201 | AUT.OSIG. DX3 2P C13 16KA

Degree of protection (IP)

IP20

Voltage type

AC

Suitable for flush-mounted installation

Yes

Built-in depth

44mm

Width in number of modular spacings

2

Rated voltage

400V

Rated current

13A

Release characteristic

C

Connectable conductor cross section multi-wired

1.5 - 25mm²

Number of protected poles

2

Connectable conductor cross section solid-core

1.5 - 35mm²

Concurrently switching neutral conductor

No

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

16kA

Rated insulation voltage Ui

500V

Rated impulse withstand voltage Uimp

4kV

Current limiting class

3

Number of poles (total)

2

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

32kA

Additional equipment possible

Yes

Ambient temperature during operating

-25 - 70°C

Frequency

50 - 60Hz

Pollution degree

2

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

16kA

Over voltage category

-

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

10kA
