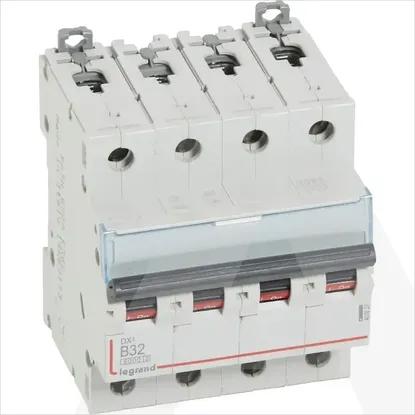

407627 | AUT.OSIG. DX3 4P B32 10KA
Code: 1778185
Order only
Zagreb0 pcs
Zadar0 pcs
Sign in or create an account for lower prices and other benefits
WSP*
41,02 €
Neto41,02 €
RP51,28 €
DetailsWarehouse statesTechnical specifications
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- LEGRAND
Technical specifications
Degree of protection (IP)
IP20
Voltage type
AC
Suitable for flush-mounted installation
Yes
Built-in depth
44mm
Width in number of modular spacings
4
Rated voltage
400V
Rated current
32A
Ambient temperature during operating
-25 - 70°C
Release characteristic
B
Number of protected poles
3
Connectable conductor cross section multi-wired
1.5 - 25mm²
Connectable conductor cross section solid-core
1.5 - 35mm²
Over voltage category
-
Rated insulation voltage Ui
500V
Current limiting class
3
Number of poles (total)
4
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
25kA
Additional equipment possible
Yes
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
-kA
Pollution degree
2
Frequency
50 - 60Hz
Concurrently switching neutral conductor
Yes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
10kA
Rated impulse withstand voltage Uimp
4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
6kA
Warehouse states
Zagreb:
0 pcs
Zadar:
0 pcs
From same serie
