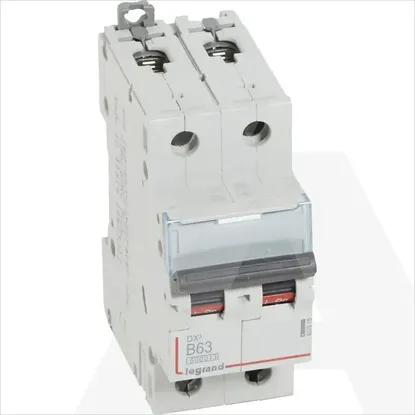

407515 | AUT.OSIG. DX3 2P B63 10KA

Degree of protection (IP)

IP20

Voltage type

AC

Suitable for flush-mounted installation

Yes

Built-in depth

44mm

Width in number of modular spacings

2

Rated voltage

400V

Rated current

63A

Release characteristic

B

Ambient temperature during operating

-25 - 70°C

Connectable conductor cross section multi-wired

1.5 - 25mm²

Connectable conductor cross section solid-core

1.5 - 35mm²

Number of protected poles

2

Over voltage category

-

Rated insulation voltage Ui

500V

Number of poles (total)

2

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

25kA

Current limiting class

3

Additional equipment possible

Yes

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

-kA

Pollution degree

2

Frequency

50 - 60Hz

Concurrently switching neutral conductor

No

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

10kA

Rated impulse withstand voltage Uimp

4kV

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

6kA
