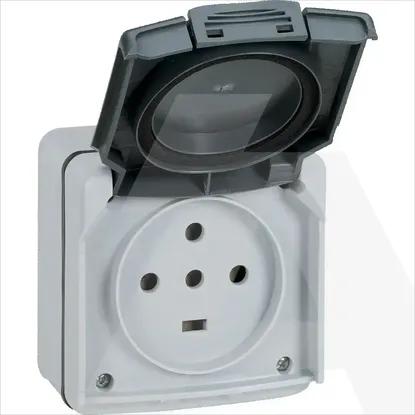

Main Product Image

091657 | PLEXO IP55 UTICNICA 3P+N+E N/Z

Code: 1776309

ManufacturerRAZNO
Catalog number091657
Type
EAN code3245060916572

Details

  • Domestic switching devices
  • Socket outlet
  • 5 KOM
  • LEGRAND

Technical specifications

Model

Other

Halogen free

Yes

Mounting method

Surface mounted (plaster)

RAL-number (similar)

7016

Type of fastening

Mounting with screw

Surface finishing

Glossy

Colour

Grey

Material

Plastic

Surface protection

Untreated

Material quality

Thermoplastic

Transparent

No

Impact strength

IK08

Suitable for degree of protection (IP)

IP55

Label space/information surface

No

With hinged lid

Yes

Number of units

1

Number of modules (module system)

-

Width of device

90mm

Nominal voltage

400V

Height of device

90mm

Frequency

50 - 60Hz

Depth of device

65mm

Connection type

Screwed terminal

Imprint/indication

Other

Lockable

No

Anti-bacterial treatment

No

Insulated mounting

No

With on/off switch

No

Over voltage protection

No

Fault current protection

No

With signal lamp

No

With function lighting

No

With enhanced contact protection

Yes

With built-in USB power supply

No

For heavy conditions (according to VDE)

No

Number of phases

1

Rated fault current

-mA

Min. depth of built-in installation box

-mm

Rotated central insert

No

Eject-mechanism

No

With orientation lighting

No

With miniature fuse

No

Special power supply

No special power supply

With loop through function

Yes

Number of socket outlets switchable

0

Protective earth pin round

Yes

Number of active pins (round)

1

Protective contact

Yes

Number of active pins (flat)

0

Nominal current

20A


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs


From same serie
