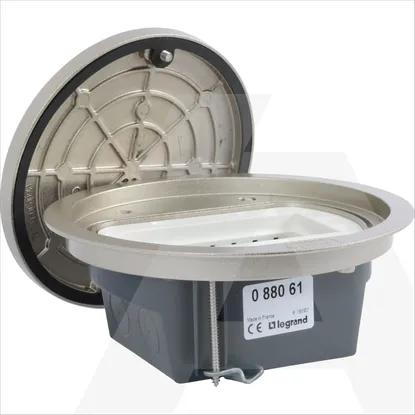

088061 | IP66 POD KUT UKLON STAIN STEEL
Code: 1776146
Details
- Sub-floor systems
- Installation box for underfloor-installation
- 1 KOM
- LEGRAND
Technical specifications
Surface protection
Chromium-plated
Colour
Other
Material
Zinc die-cast
RAL-number
-
Cover model
Round
Outer diameter
170mm
Built-in diameter
152mm
Number of socket outlets with protective contact (SCHUKO)
-
Depth of flooring recess
0mm
Number of device cups
1
Length built-in dimension
0mm
Width built-in dimension
0mm
Min. built-in depth
65mm
Number of UK BS1363 sockets
-
Width outside dimension
0mm
Length external dimension
0mm
Suitable for double floor built-in
Yes
Suitable for hollow floor
Yes
Suitable for sub-floor duct
Yes
Suitable for wet cleaning
Yes
Protective frame carpeting
Yes
With opening carpeting
No
Warehouse states
Zagreb:
0 pcs
Zadar:
0 pcs
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
