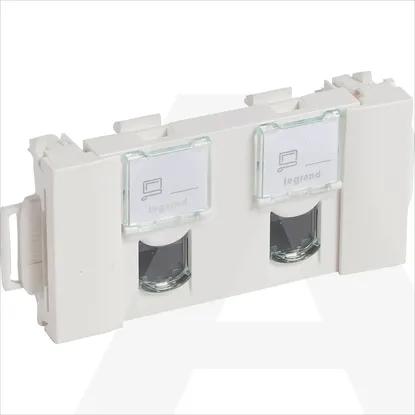

076544 | DUPLA RJ45 KAT6 UTP DIR SPOJ

Degree of protection (IP)

IP20

Colour

White

Type of fastening

Engage (snap)

RAL-number

9003

Connection type

Insulation displacement connector

Width of device

106.3mm

Height of device

45mm

Depth of device

33.7mm

Assembly arrangement

Basic element with central cover plate

With dust cover

Yes

With buses/couplings

Yes

Shielded housing

No

Outlet direction

Straight

Shielded buses

No

Suitable for number of connectors

2

With label space

Yes

Category

6

Type of connector

RJ45 8(8)

Surface mounting

No

Flush mounted (plaster)

Yes

Floor box/sub-floor mounted

Yes

Duct installation

Yes

Mechanical coding

No

Separate earthing connection

No

Colour coding

Yes

Separate strain relief

No

Design suitable

No

Mounting method shielding connection

None

Terminal resistor

No
