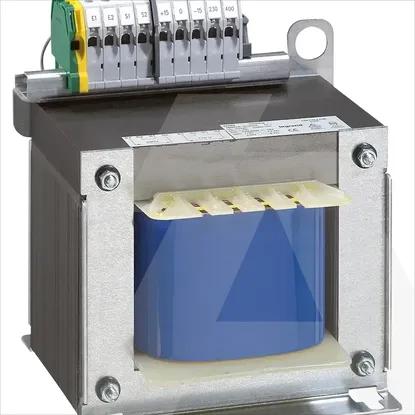

044269 | TRANSF.230/400-115/230 1600VA

Code: 1773080

ManufacturerRAZNO
Catalog number044269
Type
EAN code3245060442699

Details

  • Low-voltage industrial components
  • One-phase control transformer
  • 1 KOM
  • LEGRAND

Technical specifications

Primary voltage 10

- - -V

Secondary voltage 10

- - -V

Primary voltage 9

- - -V

Primary voltage 8

- - -V

Primary voltage 7

- - -V

Secondary voltage 3

- - -V

Secondary voltage 5

- - -V

Secondary voltage 8

- - -V

Secondary voltage 7

- - -V

Secondary voltage 6

- - -V

Secondary voltage 4

- - -V

Secondary voltage 9

- - -V

Built as safety transformer

No

Primary voltage 3

245 - 245V

Built as energy saving transformer

No

Primary voltage 2

230 - 230V

Primary voltage 1

215 - 215V

Built as isolating transformer

Yes

Type of insulation material according to IEC 85

B

Primary voltage 6

415 - 415V

Width

220mm

Height

245mm

Relative short circuit voltage

1.49%

Depth

191mm

Ring core

No

Suitable for mounting on PCB

No

Secondary voltage 2

230 - 230V

Secondary voltage 1

115 - 115V

Modular version

No

Primary voltage 4

385 - 385V

Primary voltage 5

400 - 400V

Short-circuit-proof

No

Rated apparent power

1600VA

Degree of protection (IP)

Other


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs


From same serie
