Details
- Low-voltage industrial components
- One-phase control transformer
- 1 KOM
- LEGRAND
Technical specifications
Degree of protection (IP)
IP20
Width
145mm
Height
195mm
Depth
200mm
Modular version
No
Short-circuit-proof
Yes
Relative short circuit voltage
4.5%
Primary voltage 1
215 - 215V
Secondary voltage 2
48 - 48V
Primary voltage 2
230 - 230V
Primary voltage 3
245 - 245V
Secondary voltage 1
24 - 24V
Primary voltage 6
415 - 415V
Primary voltage 10
- - -V
Secondary voltage 10
- - -V
Primary voltage 9
- - -V
Built as safety transformer
Yes
Built as energy saving transformer
No
Built as isolating transformer
No
Type of insulation material according to IEC 85
B
Primary voltage 8
- - -V
Secondary voltage 3
- - -V
Secondary voltage 5
- - -V
Primary voltage 5
400 - 400V
Primary voltage 7
- - -V
Primary voltage 4
385 - 385V
Secondary voltage 7
- - -V
Secondary voltage 6
- - -V
Secondary voltage 8
- - -V
Secondary voltage 4
- - -V
Secondary voltage 9
- - -V
Suitable for mounting on PCB
No
Ring core
No
Rated apparent power
160VA
Warehouse states
Zagreb:
0 pcs
Zadar:
0 pcs
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.

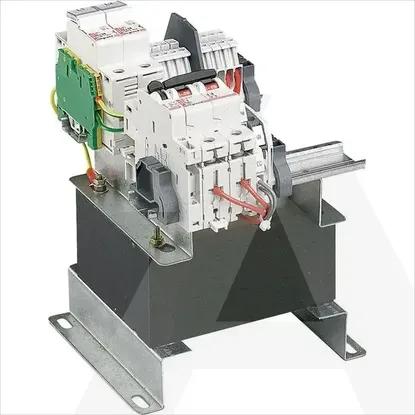

042663 | TRAN 160VA 230V TDCE V1 2X24V
