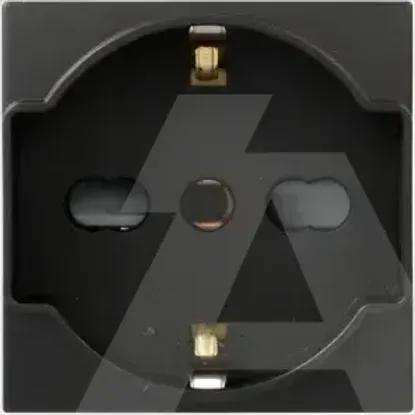

Main Product Image

WS116N

Code: 1763812

ManufacturerRAZNO
Catalog numberWS116N
Type
EAN code3250617144520

Details

  • Domestic switching devices
  • Socket outlet
  • 1 KOM
  • HAGER

Technical specifications

Model

Italian type P30

Mounting method

Flush mounted (plaster)

Type of fastening

Snap mounting (engagement)

Material quality

Other

RAL-number (similar)

8022

Surface finishing

Matt

Material

Plastic

Surface protection

Lacquered

Colour

Black

Halogen free

No

Impact strength

IK07

Suitable for degree of protection (IP)

IP20

Transparent

No

Label space/information surface

No

Number of modules (module system)

2

Width of device

45mm

Nominal voltage

250V

Height of device

45mm

Frequency

50 - 60Hz

Number of units

-

Depth of device

22.8mm

With hinged lid

No

Imprint/indication

Without imprint

Lockable

No

Anti-bacterial treatment

No

Insulated mounting

Yes

Over voltage protection

No

With on/off switch

No

Rotated central insert

No

For heavy conditions (according to VDE)

No

Fault current protection

No

Eject-mechanism

No

With built-in USB power supply

No

With function lighting

No

Rated fault current

0mA

With enhanced contact protection

No

With signal lamp

No

With miniature fuse

No

With orientation lighting

No

With loop through function

No

Special power supply

No special power supply

Number of socket outlets switchable

0

Protective earth pin round

No

Number of active pins (round)

0

Number of active pins (flat)

2

Cover

Other

Phase pickup

L1

Nominal current

16A


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs


From same serie

*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
